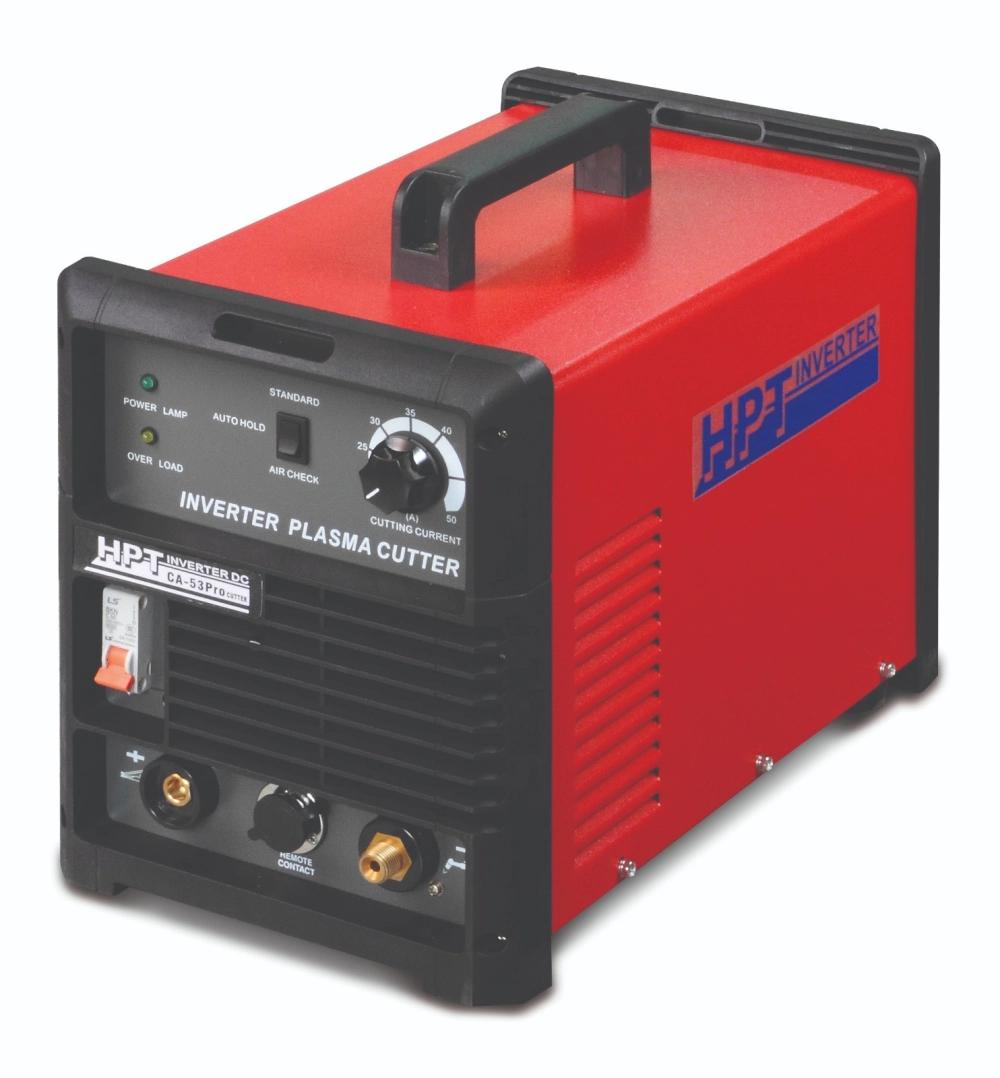

HPT INVERTER PLASMA CUTTING MACHINE CA53 PRO
WhatsApp us
| SPECIFICATIONS | UNIT | CA-53 PRO |
| Rated Input Voltage | VAC | 220,1Ø, ±15% |
| Rated Frequency | % | 50 / 60 |
| Input At Rated Load | KVA | 10.6 |
| KW | 6.8 | |
| Rated Output Voltage | VDC | 100 |
| Rated Output Current | ADC | 20 – 50 |
| Open Circuit Voltage (O.C.V.) | VDC | APPROX. 266 |
| Duty Cycle (At A.W.S.STD) | % | 40% at 40°C |
| Key Controls | Standard | Yes |
| Auto Hold | Yes | |
| Air Check | Yes | |
| Pilot Arc Start | – | – |
| Pre Flow Time | SEC | 1 |
| Post Flow Time | SEC | 13 |
| Max Separation Cut Thickness | MM | 16 |
| Max Quality Cut Thickness | MM | 8 |
| Insulation Class | Level | H |
| IP Rating | Level | IP21S |
| Dimension (W*D*H*) | MM | 230*430*300 |
| Weight | KG | 15 |
