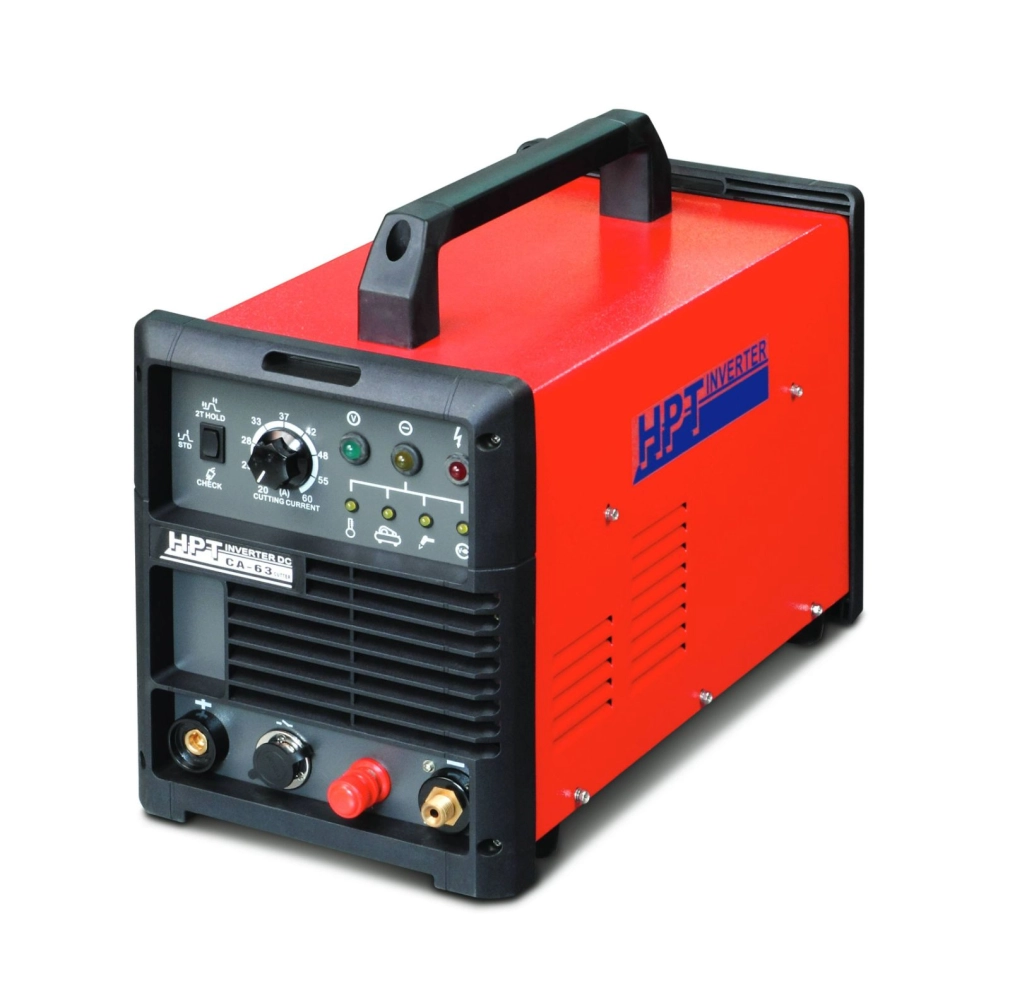

HPT INVERTER PLASMA CUTTING MACHINE CA63 PRO
WhatsApp us
| SPECIFICATIONS | UNIT | CA-63 PRO |
| Rated Input Voltage | VAC | 415, 3Ø, ±18% |
| Rated Frequency | % | 50 / 60 |
| Input At Rated Load | KVA | 14. 12 |
| KW | 9.25 | |
| Rated Output Voltage | VDC | 120 |
| Rated Output Current | ADC | 20 – 60 |
| Open Circuit Voltage (O.C.V.) | VDC | APPROX. 266 |
| Duty Cycle (At A.W.S.STD) | % | 50% at 40°C |
| Key Controls | Standard | Yes |
| Auto Hold | Yes | |
| Air Check | Yes | |
| Pilot Arc Start | – | Yes |
| Pre Flow Time | SEC | 0.5 |
| Post Flow Time | SEC | 20 |
| Max Separation Cut Thickness | MM | 25 |
| Max Quality Cut Thickness | MM | 16 |
| Insulation Class | Level | B |
| IP Rating | Level | IP21S |
| Dimension (W*D*H*) | MM | 505*230*330 |
| Weight | KG | 22 |
