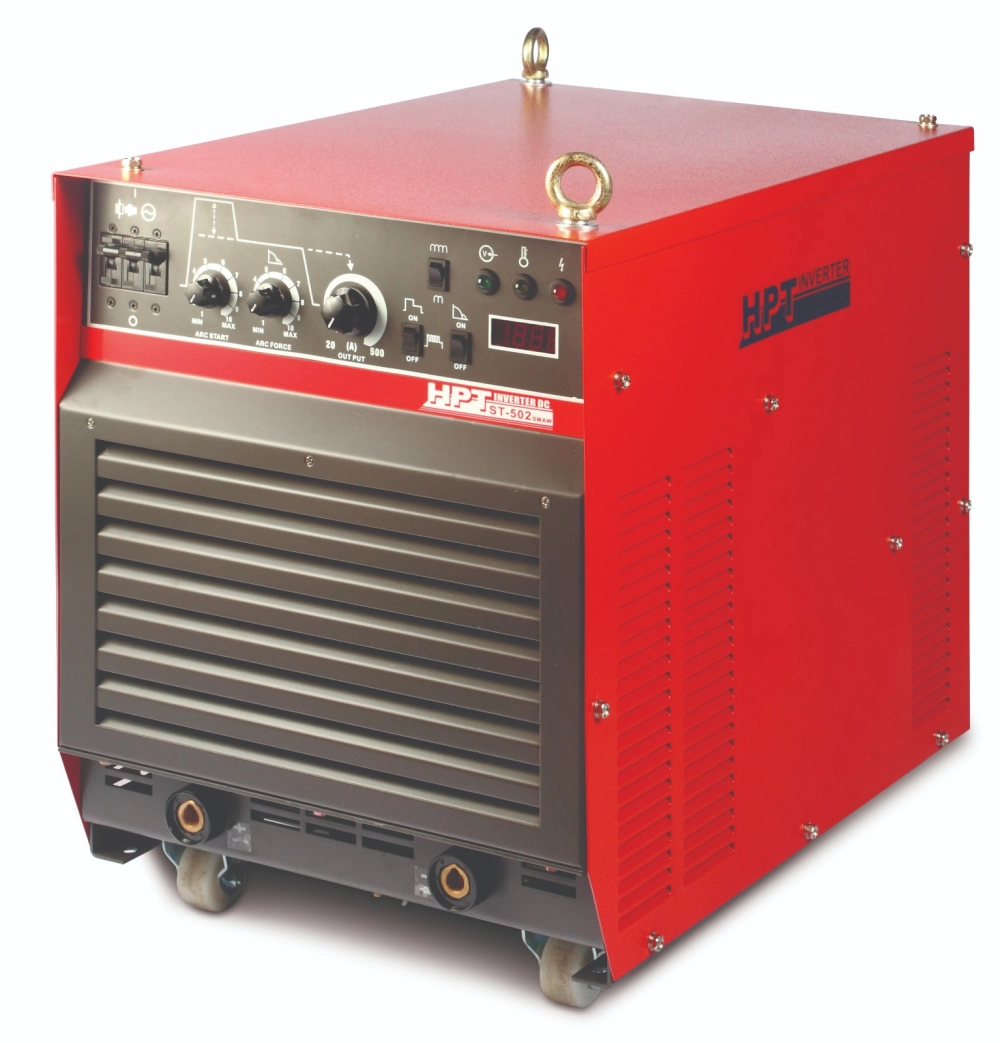

HPT INVERTER STICK WELDING MACHINE ST502
WhatsApp us

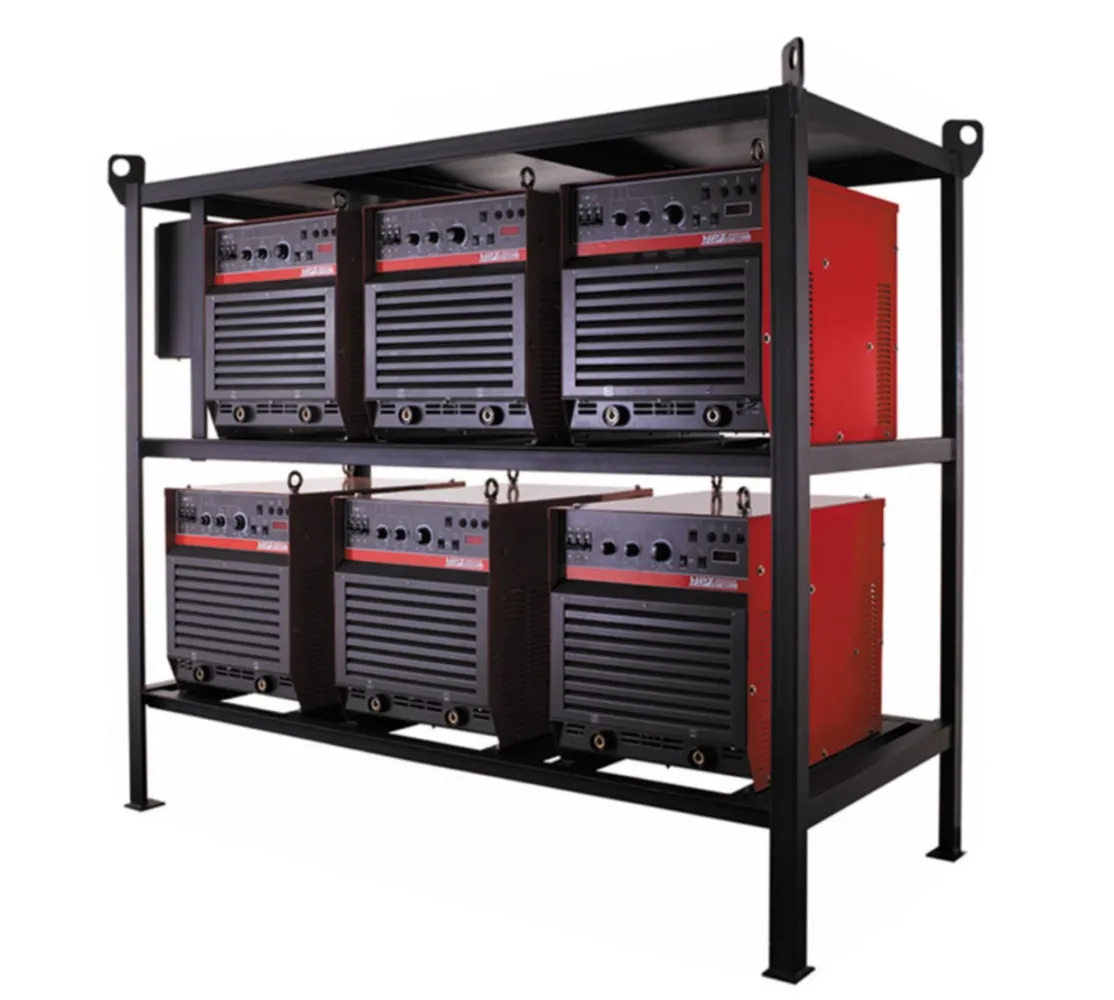

| SPECIFICATIONS | UNIT | ST-502 | ST-502-6R C / W RACK |
| Rated Input Voltage | VAC | 415, 3Ø, 50/60Hz | 415, 3Ø, 50/60Hz |
| Rated Voltage | % | ±15 | ±15 |
| Rated Input Power | KVA/KW | 27 / 25 | 27 / 25 |
| Rated Output Current | ADC | 20 – 500 | 20 – 500 |
| Rated Output Voltage | VDC | 40 | 40 |
| Rated Duty Cycle | % | 40 at 40°C | 40 at 40°C |
| Open Circuit Voltage | VDC | 70 | 70 |
| Efficiency | % | 85 | 85 |
| Power Factor | Ø | 0.9 | 0.9 |
| Insulation Class | Level | H | H |
| IP Rating | Level | IP23S | IP23S |
| Dimension (W*D*H) | mm | 670*420*580 | 1755*815*1800 |
| Weight | KG | 64 | 400 |
