GIM 60 L Professional Digital Inclinometer

Laser-accurate incline transfer over longer distances

• Integrated point laser for incline measurement up to a distance of 30 m
• Strong magnets and two straps for securely fastening the instrument to workpieces
• Incline mechanism for fine adjustment on uneven surfaces

• Additional data

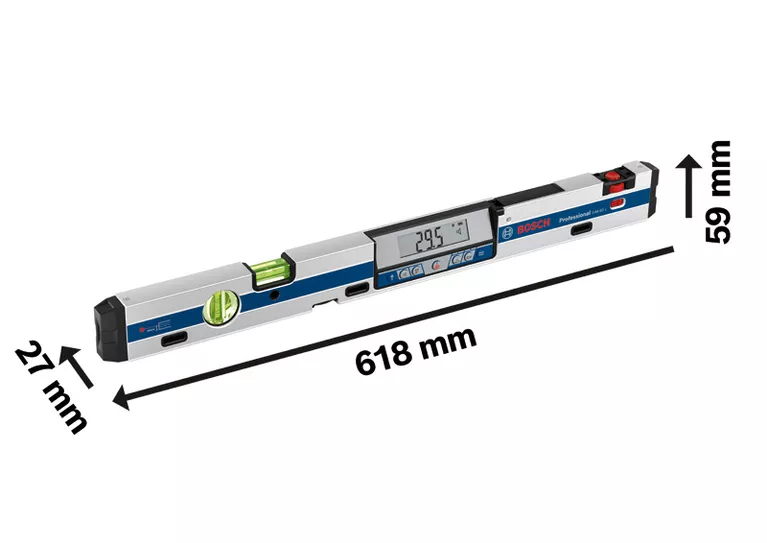

  Length

  60 cm

  Measurement range

  0 – 360° (4 x 90°)

  Electronics measurement accuracy 0°/90°

  ± 0.05°

  Electronics measuring accuracy at 1– 89°

  ± 0.1°

  Working range (laser)

  30 m

  Power supply, inclination measurement

  1 x 9 V-6LR61 + 2 x 1.5 V LR03

  Weight approx.

  0.91 kg

  Laser type

  650 nm, < 1 mW

  Laser range

  30 m

  Laser class

  2

  Levelling accuracy of laser

  ± 0,5 mm/m

  Units of measurement

  °, %, mm/m

  Tripod thread

  1/4″
