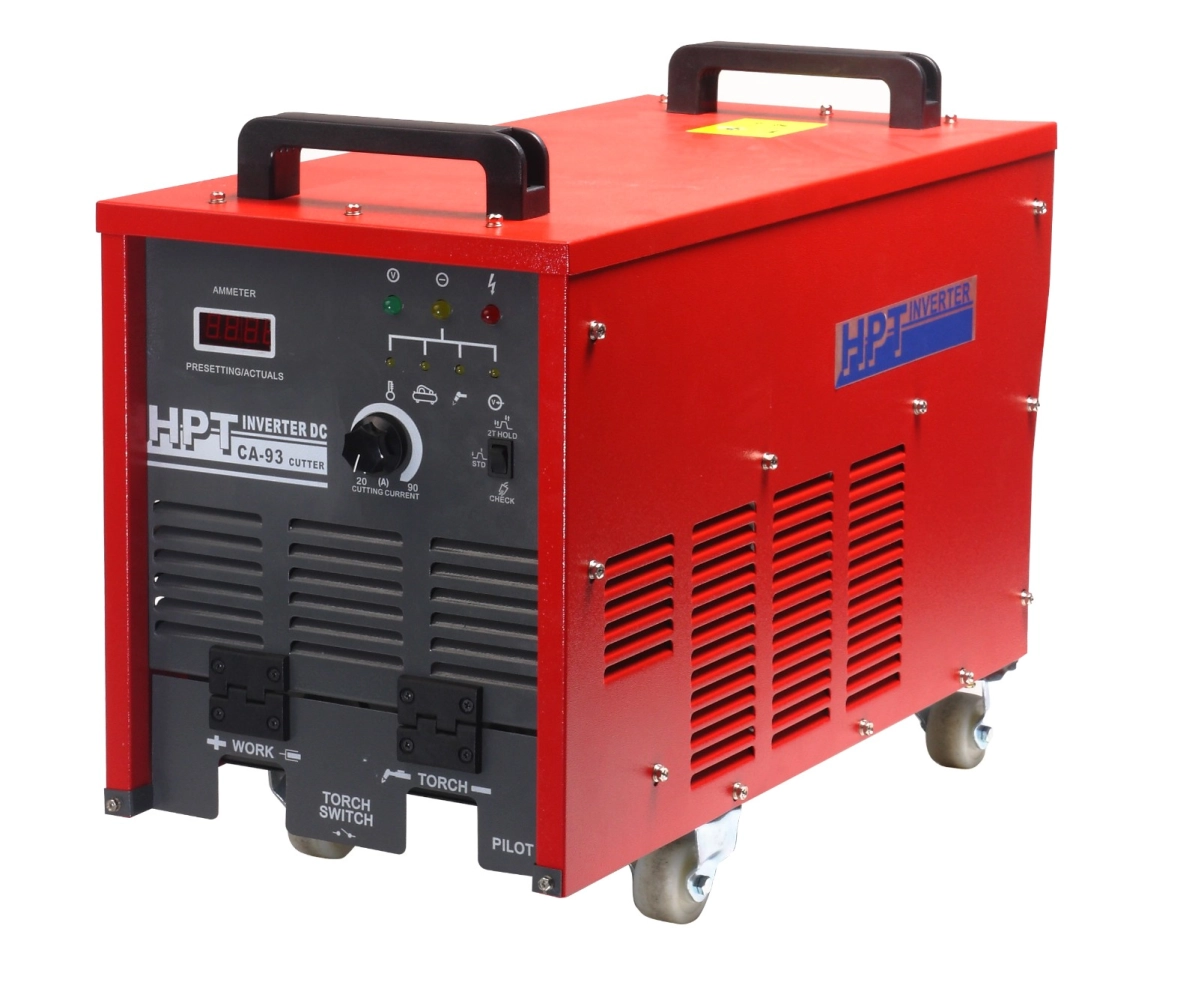

HPT INVERTER PLASMA CUTTING MACHINE CA93
WhatsApp us
| SPECIFICATIONS | UNIT | CA-93 |
| Rated Input Voltage | VAC | 415, 3Ø, ±18% |
| Rated Frequency | Hz | 50 / 60 |
| Input At Rated Load | KVA | 19.94 |
| KW | 15.48 | |
| Rated Output Voltage | VDC | 150 |
| Rated Output Current | ADC | 20 – 90 |
| Open Circuit Voltage (O.C.V.) | VDC | APPROX. 266 |
| Duty Cycle (At A.W.S.STD) | % | 60% at 30°C |
| Key Controls | Standard | Yes |
| Auto Hold | Yes | |
| Air Check | Yes | |
| Pilot Arc Start | – | Yes |
| Pre Flow Time | SEC | 0.5 |
| Post Flow Time | SEC | 20 |
| Max Separation Cut Thickness | MM | 35 |
| Max Quality Cut Thickness | MM | 25 |
| Insulation Class | Level | B |
| IP Rating | Level | IP21S |
| Dimension (W*D*H*) | MM | 302*532*324 |
| Weight | KG | 30 |
