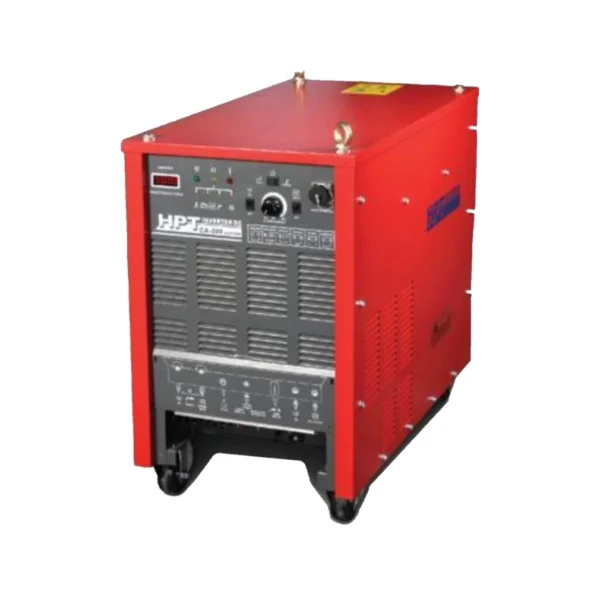

HPT INVERTER PLASMA CUTTING MACHINE CA200
WhatsApp us
PLASMA CUTTING MACHINE CA-200
| Specifications | UNIT | CA – 200 |
| Rated Input Voltage | VAC | 415 |
| Rated Input Phase | Phase | 3 |
| Rated Frequency | Hz | 50 / 60 |
| Input at Rated Load | KW / KVA | 35 |
| 41.7 | ||
| Rated Output Voltage | VDC | 150 |
| Rated Output Current | A | 20 – 200 |
| Open Circuit Voltage (O.C.V.) | VDC | 310 |
| Duty Cycle | % | 100 (40c / 10MIN) |
| Insulation Level | Class | H |
| IP Rating | Class | IP21S |
| PG Pre – Flow Time | SEC | 0.5 |
| PG Post – Flow Time | SEC | 20 |
| SG Pre – Flow Time | SEC | 0.5 |
| SG – Flow Time | SEC | 20 |
| Maximum Cutting | MM | 75 |
| Capacity (Quality) | MM | 70 |
| Dimension (W*D*H*) | MM | 755*430*730* |
| Weight | KG | 93 |
