HERO TECH INVERTER TIG WELDING MACHINE TP20P
WhatsApp us

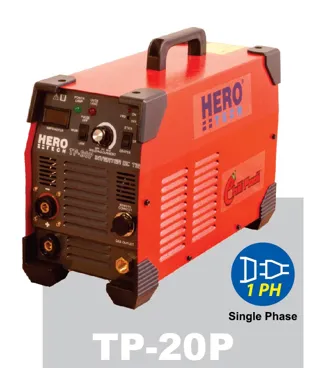

GTAW (TIG) Welding Machine TP-20P
TIG SERIES
Features:
- Constant output by digital control inverter
- High reliable PC Board complete with a wide range of welding current
- High-frequency DC arc starting with pulse control
- Continuous pulse adjustment for automatic welding
- Multiple circuit protection
- Voltage Peduction Device (VRD) safety feature included as standard
| SPECIFICATION | TP – 20P | |
| Power Voltage (VAC) | 220, 1Ø, 50/60Hz | |
| Rated Frequency (%) | ±15 | |
| Rated Input Load | TIG 7.80(KVA) / 5.00(KW) STICK 5.20(KVA) / 3.00(KW) |
|
| Rated Output Voltage (VDC) | TIG 18.0
STICK 25.6 |
|
| Rated Output Current (ADC) | TIG 5(+0,-1) ~ 200(+2/-0)
STICK 5(+0,-1) ~ 140(+2/-0) |
|
| Voltage Reduction Device (VRC) | ON/OFF | |
| Post Flow time (Sec) | 1.5/3.0 Fixed Type | |
| Pre Flow Time (Sec) | 0.07/0.04/0.03 SW Adjustment | |
| Duty Cycle (%) | 20 | |
| Dimension (W*D*H) mm | 195*450*280 | |
| Weight (KG) |
