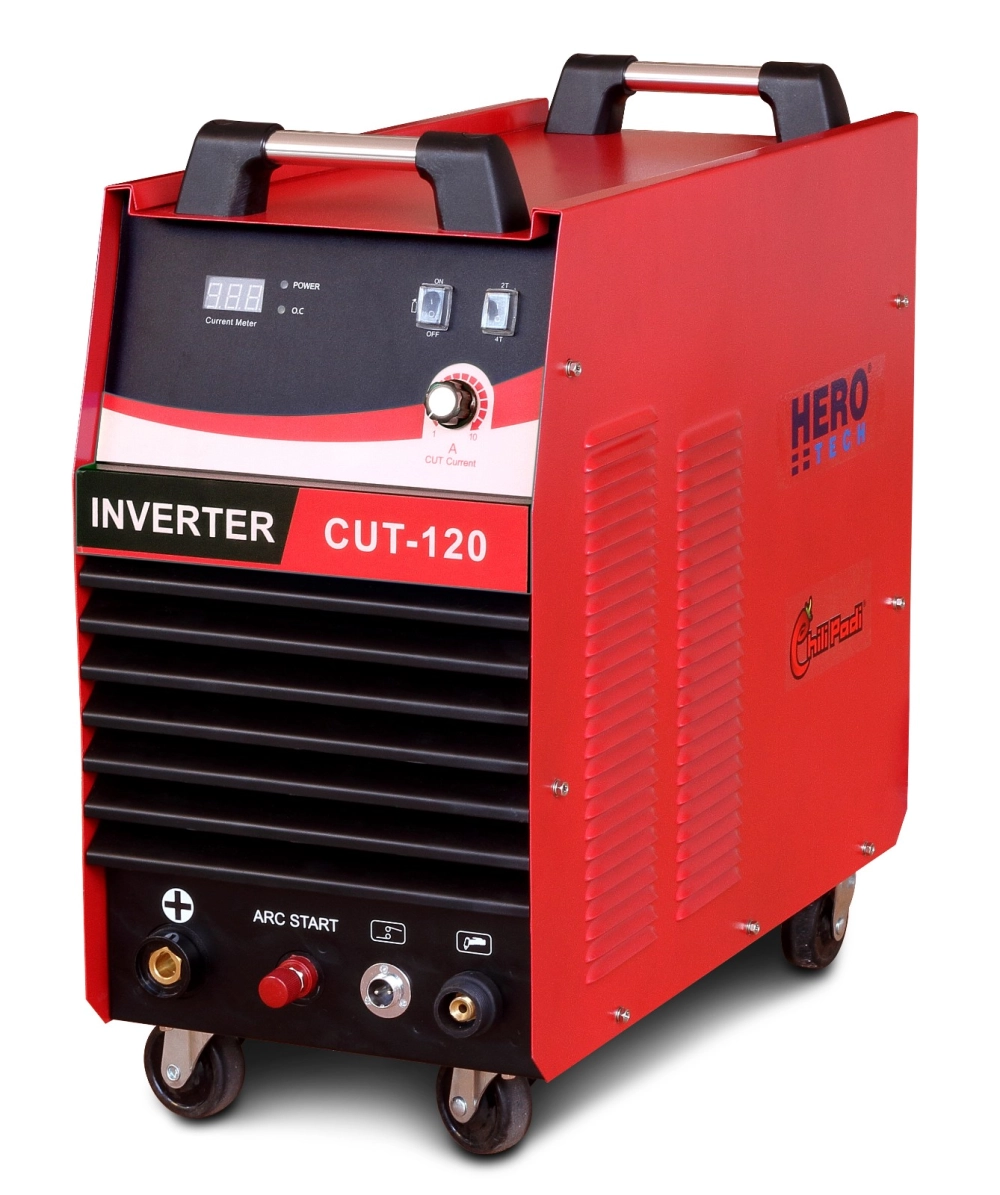

HERO TECH INVERTER PLASMA CUTTING MACHINE CUT120

Inverter Plasma Cutting Machine CP-40 / CUT-70 / CUT-120

Feature:

• Increased cutting capacity, compared with oxy-acetylene cutting, cutting speed increased 1.8 times.
• Effective and economical cutting capacity both in speed and thickness
• Able to cut stainless steel, carbon steel, alloy steel, copper, aluminium and etc.
• Users low-cost compressed air
• Optional professional cutting torch, improve cutting ability more than twice
• Digitally-controlled inverter power for constant output


  Specifications	UNIT	CUT-120
  Input Voltage	VAC	415, 3Ø, 50/60Hz
  Rated Voltage	%	±15
  Rated Input Power	KVA	23
  Rated Duty Cycle	%	60
  Efficiency	%	85
  Power Factor	%	93
  Output Current	ADC	20 – 120
  Output Voltage	VDC	120
  Open Circuit Voltage	VDC	380
  Air Flow	M / min	0.36
  Air Pre-Flow	SEC	0.1
  Max. Cutting Thickness	MM	45
  Perfect Cutting Thickness	MM	25
  Control	–	STANDARD
  Arc Starting	–	No-contact arc starting
  Insulation Class	LEVEL	F
  IP Rating	LEVEL	IP21S
  Dimension (W*D*H)	MM	280*590*560
  Weight	KG	35
