GCL 2-50 CG Professional Combi Laser

Supreme visibility connected with smart functions

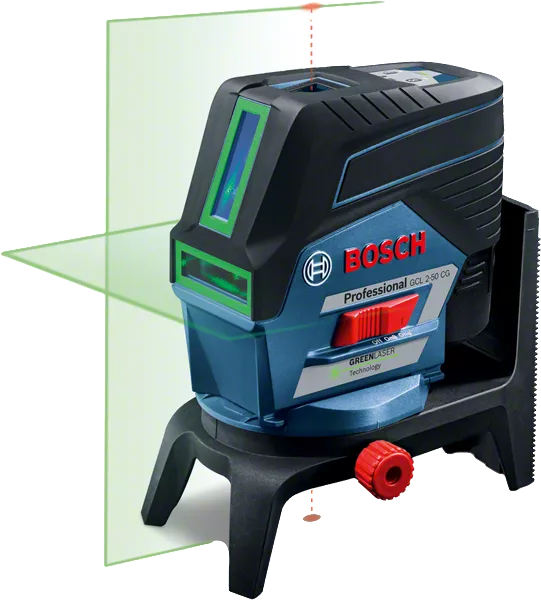

• Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility
• Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
• Dual Power Source allows for the use of 12 V Li-ion battery or standard alkaline batteries

• Additional data

  Tripod thread

  1/4″

  Battery voltage

  12.0 V

  Laser diode

  500 – 540 nm, < 10 mW, 630 – 650 nm, < 1mW

  Operating temperature

  -10 – 50 °C

  Storage temperature

  -20 – 70 °C

  Laser class

  2

  Working range

  20 m

  Working range with receiver

  50 m

  Accuracy

  ± 0.3 mm/m* (*plus use-dependent deviation)

  Working range of laser points, max.

  10 m (top), 10 m (bottom)

  Self-levelling range

  ± 4°

  Dust and splash protection

  IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)

  Operating time (max.)

  10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation, 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation, 15 h (Li-Ion) and 12 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation

  Weight, approx.

  0.6 kg

  Colour of laser line

  green

  Color of plumb points

  red

  Projection

  2 lines / 2 points

  Plumb point accuracy

  ± 0.7 mm/m* (*plus use-dependent deviation)

  Compatible laser receivers

  LR 7

  Working range, value

  20 m

  Working range with receiver, value

  50 m

  GCL 2-50 CG Professional: Further information

  Product Highlights

  The combi laser GCL 2-50 CG Professional offers supreme visibility with a range of smart functions. Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility, while its Bluetooth®-connection offers remote-control adjustment via a smartphone app. For increased flexibility, Dual Power Source allows 12 V Li-ion battery or standard alkaline batteries.

  Equipment & Application

  This combi laser is designed for horizontal and vertical alignments with a long overshoot of nearly 360° and is suitable for projects such as dry wall installation and interior finishing tasks.

  Additional Information

  The GCL 2-50 CG Professional delivers high visibility of up to 20 m without a receiver and 50 m with a receiver. For precise positioning around the plumb points, the RM 3 Professional offers motorised control, and RM 2 Professional allows for manual adjustments.
