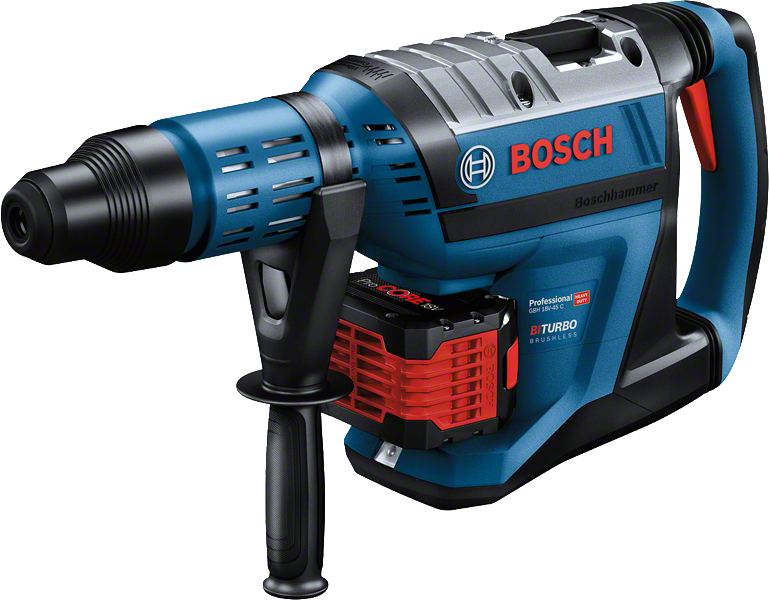

GBH18V-45 C Cordless Rotary Hammer BITURBO with SDS max

Cordless freedom with corded performance – the heavy duty all-rounder for concrete drilling and chiselling

• Cordless freedom with corded performance thanks to BITURBO Brushless technology
• Up to 700 g less weight than comparable corded products thanks to a highly optimized drive train
• KickBack Control for reduced hazard of sudden tool reactions and Soft Start EPC & ASC for a comfortable and precise work process

• Additional data

  Battery capacity

  12 Ah

  Battery voltage

  18.0 V

  Impact energy

  12.5 J

  Tool holder

  SDS max

  Weight incl. battery

  9.3 kg

  Impact rate at rated speed

  0 – 2,760 bpm

  Rated speed

  0 – 305 rpm

  Weight excl. battery

  8 kg

  Drilling range

  Drilling dia. in concrete with hammer drill bits

  12 – 45 mm

  Opt. app. range in concrete with hammer drill bits

  20 – 40 mm

  Total vibration values (Hammer drilling in concrete)

  Vibration emission value ah

  8.5 m/s²

  Uncertainty K

  1.5 m/s²

  Total vibration values (Chiselling in concrete)

  Vibration emission value ah

  7 m/s²

  Uncertainty K

  1.5 m/s²

  Hammer drilling in concrete

  Vibration emission value ah

  8.5 m/s²

  Uncertainty K

  1.5 m/s²

  Chiselling in concrete

  Vibration emission value ah

  7 m/s²

  Uncertainty K

  1.5 m/s²

  GBH 18V-45 C Professional: Further information

  Product Highlights

  The GBH 18V-45 C Professional rotary hammer delivers cordless freedom with corded performance. Its new high-performance brushless motor and the new ProCORE18V batteries provide 12.5 Joules of impact energy with enough power for even the most demanding SDS max applications. At the same time a highly optimized drive train leads to a significant reduction in the weight of the GBH 18V-45 C; this makes it lighter than comparable corded products, even with an attached ProCORE18V 12.0 Ah battery.

  Equipment & Application

  The rotary hammer is perfect for drilling and chiselling in concrete, stone, rock, and brickwork and is compatible with all Bosch Professional 18 V batteries and chargers. Maximum power with ProCORE18V ≥ 8.0 Ah.
