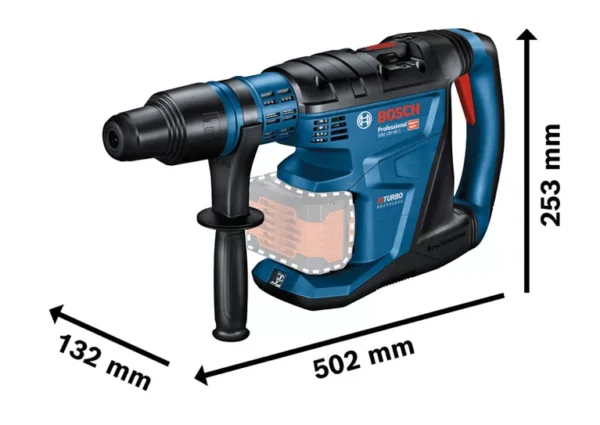

GBH18V-40 C Cordless Rotary Hammer BITURBO with SDS max

Cordless freedom with corded performance – SDS-max all-rounder for concrete chiselling and drilling up to 40mm

• BITURBO Brushless technology with ProCORE18V for corded performance providing powerful 9.0 J impact energy
• Optimal power-to-weight ratio due to an improved impact mechanism and highly capable drive train
• Minimised hand and arm injuries by instantly shutting down the rotary hammer thanks to KickBack Control

• Additional data

  Battery voltage

  18.0 V

  Impact energy

  9 J

  Tool holder

  SDS max

  Impact rate at rated speed

  0 – 3,130 bpm

  Rated speed

  0 – 360 rpm

  Weight excl. battery

  7 kg

  Drilling range

  Drilling dia. in concrete with hammer drill bits

  12 – 40 mm

  Opt. app. range in concrete with hammer drill bits

  18 – 32 mm

  Total vibration values (Hammer drilling in concrete)

  Vibration emission value ah

  9.2 m/s²

  Uncertainty K

  1.5 m/s²

  Total vibration values (Chiselling in concrete)

  Vibration emission value ah

  7.6 m/s²

  Uncertainty K

  1.5 m/s²

  Hammer drilling in concrete

  Vibration emission value ah

  9.2 m/s²

  Uncertainty K

  1.5 m/s²

  Chiselling in concrete

  Vibration emission value ah

  7.6 m/s²

  Uncertainty K

  1.5 m/s²

  GBH 18V-40 C Professional: Further information

  Product Highlights

  The GBH 18V-40 C Professional offers corded performance thanks to its BITURBO Brushless technology providing powerful 9.0 J impact energy. Cordless freedom with ProCORE18V batteries allows fast drilling up to 40 mm chisel works even in tough environments. It provides an optimal power-to-weight ratio due to an improved impact mechanism and highly capable drive train. In addition to the overload clutch the GBH 18V-40 C offers KickBack Control, which senses sudden loss of tool control. In case of e.g. a canted drill it instantly shuts the cordless rotary hammer down in order to minimise hand and arm injuries.

  Equipment & Application

  The GBH 18V-40 C Professional is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V system). To reach the maximum power in concrete, stone, and masonry, choose a ProCORE18V battery ≥ 5.5 Ah.
