D-tect120 Professional Detector

ntuitive radar scanner for almost all materials

• Spot measurement provides accurate detection on narrow surfaces
• Centre finder offers visual guidance, to clearly identify the precise location of the object’s centre
• Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

• Additional data

  Battery voltage

  12.0 V

  Bosch Radar Technology

  yes

  Max. detection depth

  120 mm

  Detectable objects

  magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures

  Detection depth, magnetic metal, max.

  120 mm

  Detection depth, non-magnetic metal, max.

  120 mm

  Detection depth, live cables, max.

  60 mm

  Detection depth, wooden substructures, max.

  38 mm

  Accuracy

  ± 10 mm* (*plus use-dependent deviation)

  Views

  Spot view

  Wall types

  Concrete, Drywall, Universal

  Material identification

  Live cable

  Power supply

  12 V Li-ion or 4 x 1.5 V LR6 (AA)

  Automatic deactivation, approx.

  5 min

  Weight, approx.

  0.5 kg

  Additional function

  Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

  D-tect 120 Professional: Further information

  Product Highlights

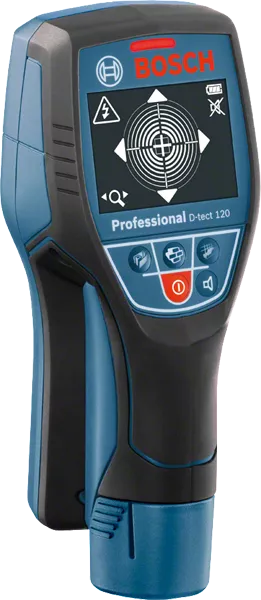

  The detector D-tect 120 Professional is an intuitive radar scanner developed for almost all materials. Spot measurement provides accurate detection on narrow surfaces, while the centre finder shows the precise location of an object’s centre. Additionally, Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries.

  Equipment & Application

  It is suitable for a range of craftsmanship disciplines to locate pipes filled with water and cables as well as to avoid drilling mishaps when performing carpentry, plumbing, electrical, and HVAC applications.

  Additional Information

  The D-tect 120 Professional offers a simple user interface with three self-explanatory selection buttons for adjusting to various applications and it is able to detect objects at depths of up to 12 cm. Audio and visual signals notify the user when objects are detected in the wall.
