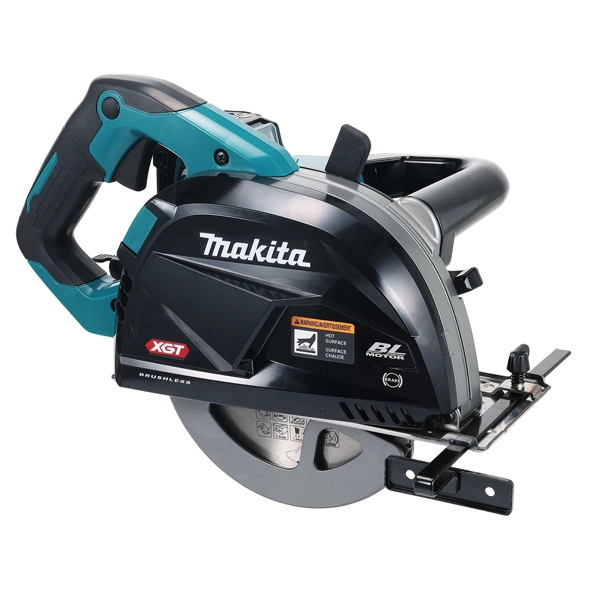

CS002GZ 185 mm (7-1/4″) 40Vmax Cordless Metal Cutter
WhatsApp us
Features
- Designed mainly for single-pass cutting of 65mm metal studs, 2-1/2″ equal angle steel bars and lip channel steel bars
- Max cutting capacity of 67mm (2-5/8″). The gear size of the final shaft is minimized by using a high torque BL motor, providing 185mm (7-1/4″) CS002G with the same cutting capacity as a 203mm (8″) class corded model
- 40Vmax XGT battery and High torque BL motor deliver high operation efficiency similar or superior to our or the competing corded models
- Improvement in ease to attach/detach Dust box, Dust disposal efficiency is improved by newly using a mechanism which allows for attaching/detaching simply by one-hand operation of a plastic lever
- Equipped with a Lever for opening/closing Safety cover to comply with International Standard
- Built-in dust collection box for cleaner work environment
- Built-in twin LED lights with afterglow function for better illumination and more accurate work
- Electric brake allows you to move on to the next cutting immediately
- Soft start reduces recoil at startup
- Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on
- Lock-off (2 stage) safety switch for increased operator safety
Specification
| Wheel Diameter | 185 mm (7 – 1/4″) |
| Hole Diameter | 20 mm (13/16″) |
| Max Cutting Capacity | 0°: 67 mm (2-5/8″) |
| No Load Speed (RPM) | 3,500 |
| Dimensions (L x W x H) | 350 x 232 x 270 mm (13-3/4 x 9-1/8 x 10-5/8″) |
| Net Weight | 4.2 – 5.4 kg (9.3 – 11.9lbs.) |
| Work Amount (approx.) | 210 pcs with BL4050F Saw blade – cut 2-1/2″ equal angle steel bars (t = 6.0 mm) |
| * Recommended batteries 2.5 Ah, 4.0 Ah, 4.0 Ah (F), 5.0 Ah
