GCM18V-254 D Professional Cordless Mitre Saw BITURBO

Cuts up to 90 x 305 mm: mobile and lightweight cordless miter saw with high ergonomics

• Strong corded cutting performance due to BITURBO Brushless drive train
• Even long materials can be easily controlled during cutting
• More comfort and flexibility for demanding cuts due to dual bevel function

• Additional data

  Battery voltage

  18.0 V

  Saw blade diameter

  254 mm

  Mitre setting

  48 ° L / 48 ° R

  Bevel setting

  47 ° L / 47 ° R

  Weight

  17.7 kg

  Cutting capacity, 0°

  90 x 305 mm

  Cutting capacity, 45° mitre

  90 x 215 mm

  Cutting capacity, 45° bevel

  55 x 305 mm

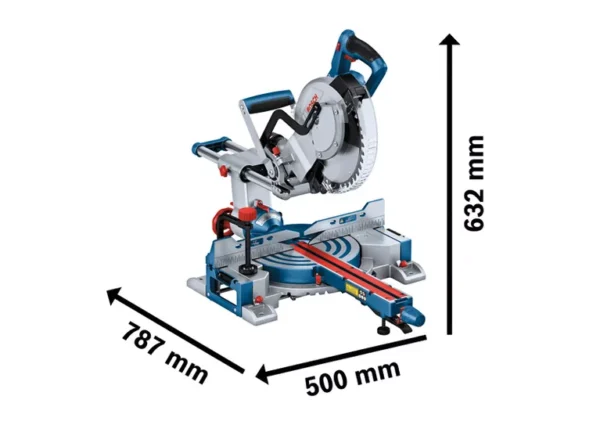

  Tool dimensions (width x length x height)

  500 x 787 x 632 mm

  No-load speed

  4,500 rpm

  Saw blade bore diameter

  25.4 mm

  GCM 18V-254 D Professional: Further information

  Product Highlights

  Its BITURBO Brushless drive train combined with its ProCORE18V battery provides the cordless GCM 18V-254 D Professional with strong cutting performance. The detachable workpiece supports, and long table extensions allow, the mobile miter saw to easily control long materials during cutting. Even challenging cuts are done with more comfort and flexibility thanks to the dual bevel setting with the ergonomic bevel lock wheel.

  Equipment & Application

  Cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic are the ideal application areas of the GCM 18V‐254 D Professional. It is compatible with all batteries and chargers in the Bosch Professional 18V System. For maximum power, use ProCORE18V ≥ 5.5 Ah. For sufficient runtime, 8 Ah or 12 Ah are recommended. It is also compatible with all Bosch dust extractors, GTA saw stands, and saw blades for cordless miter saws.
