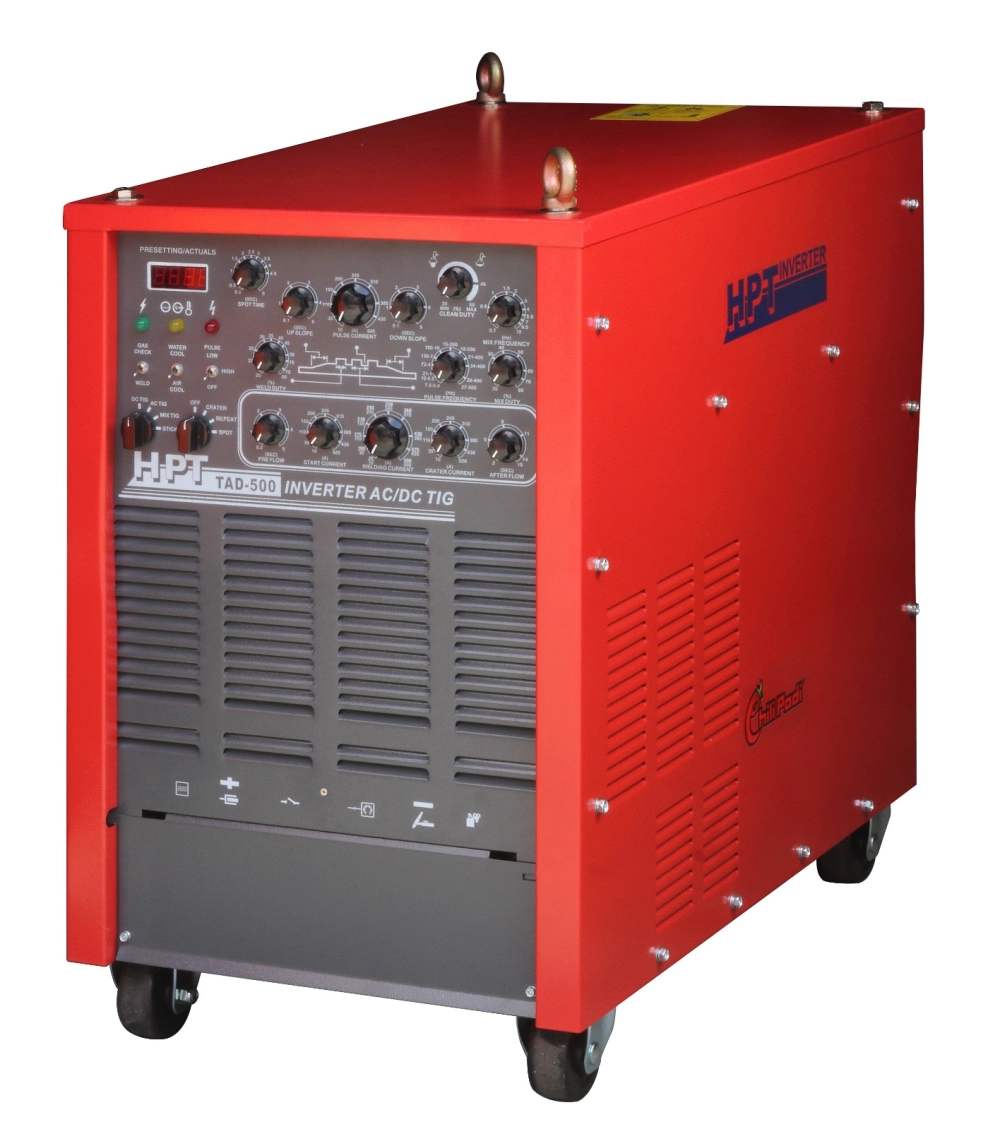

HPT INVERTER TIG WELDING MACHINE TAD500

Feature:

• Aluminium, aluminium alloy and other kinds of material can be welded in high quality.
• Outdoor working, high duty cycle and improved electrical saving
• Stable arc start. Changeable hard / soft arc. Built in pulse and DC TIG / AC TIG / MIX TIG / STICK function. Short time of pre-heat and high efficiency.
• High quality synchronism welding to satisfy middle thickness welding at one time can be achieved by two of TAD-500

Application:

• Precision and heavy metal fabrication, pipe and tube fabrication, bicycle manufacturing, sport equipment manufacture, door and window manufacture.


  SPECIFICATIONS			UNIT	TAD-500
  Rated Output Voltage			A	500
  Rated Input Voltage			V	3 Phase 415V
  Input Frequency			Hz	50 / 60
  Output Current	Three Phase	TIG	A	DC: 10 – 500
  				AC: 25 – 500
  		STICK	A	DC: 10 – 400
  Output Voltage	Three Phase	TIG	V	DC: 30
  				AC: 30
  		STICK	V	DC: 36
  Input At Rated Load	Three Phase	TIG	KVA / KW	DC: 22.91 / 21.33
  				AC: 22.91 / 21.33
  		STICK	KVA / KW	DC: 22.91 / 21.33
  Rated Duty Cycle (At A.W.S STD)			%	100% 30°C
  Open Circuit Voltage (O.C.V.)			V	DC: 67
  				AC: 120
  Start Current (Initial Current)			A	DC: 10 – 400
  				AC: 25 – 400
  Crater Current			A	DC: 10 – 400
  				AC: 25 – 400
  Pulse Current			A	10 – 400
  Upslope Time			SEC	0.2 – 5
  Downslope Time			SEC	0.2 – 5
  ARC Spot Time			SEC	0.2 – 6
  PRE Flow Time			SEC	0.2 – 5
  Mix Frequency			Hz	0.5 – 10
  Mix AC DC Ratio			%	20 – 80
  Post Flow			SEC	Feb-15
  Low Pulse Frequency			Hz	0.5 – 27
  MID Pulse Frequency			Hz	7.5 – 500
  Pulse Frequency			%	20 – 80
  Cleaning / Penetration Ratio			%	20 – 80
  Crater Function			–	On / Off – Repeat
  Remote Control			–	Optional (8M Cable)
  Dimension (W*D*H*)			MM	445*610*550
  Weight			KG	70
