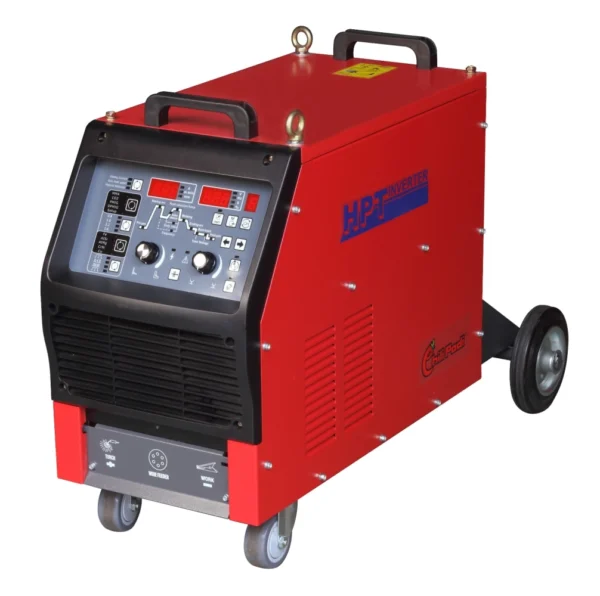

HPT INVERTER MULTI PROCESS WELDING MACHINE DP400

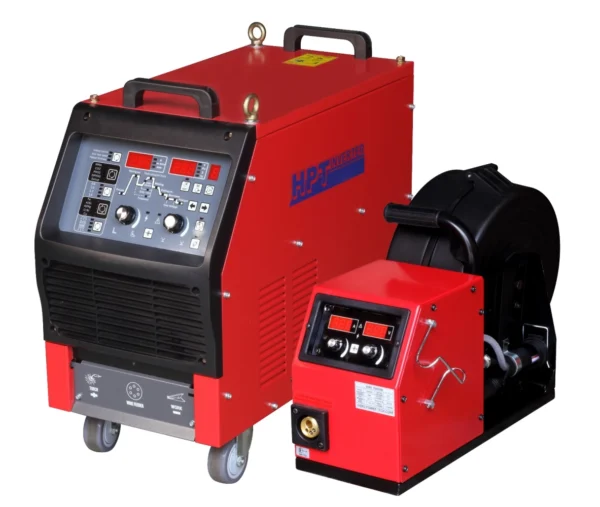

MULTI PROCESS WELDER – PULSE / DOUBLE PULSE ( WIRE FEEDER )

Features:

• Multifunction – pulse MIG / MAG, Double pulse MIG / MAG, MIG / MAG, Lift TIG welding, MMA
• Welds carbon steel, aluminum silicon, aluminum magnesium, stainless steel and copper and etc.
• Wire diameters capability of 0.8mm, 1.0mm, 1.2mm
• Full digital control with paramteter preset for welding current, voltage, welding material, wire diameter and etc
• Up to 10 sets of welding specifications can be stored
• Welding torch control consist of 2T, 4T and special 4T function
• Can be fully integrated for automatic welding or robotic welding application.  (Optional)

  SPECIFICATIONS	UNIT	DP – 400
  Input Voltage	VAC	415, 3Ø, 50 / 60Hz
  Rated Voltage	%	±15
  Rated Input Voltage	KVA KW	18.5 13.11
  Rated Output Current	ADC	400
  Rated Output Voltage	VDC	31.5
  Open Circuit Voltage	V	70
  Duty Cycle at 10min / 40	%	60
  	AC / DC V	40 – 400 14 – 40
  Efficiency	%	84



  WELDING PROCESS – MIG MAG

  Wire diameter	MM	0.8 / 1.0 / 1.2
  Pre – flow time	SEC	0 – 3.0
  Post-flow time	SEC	0 – 20
  Insulation class	LEVEL	H
  IP rating	LEVEL	IP21S
  Dimension (W*D*H)	MM	302 x 640 x 455
  Weight	KG	45
