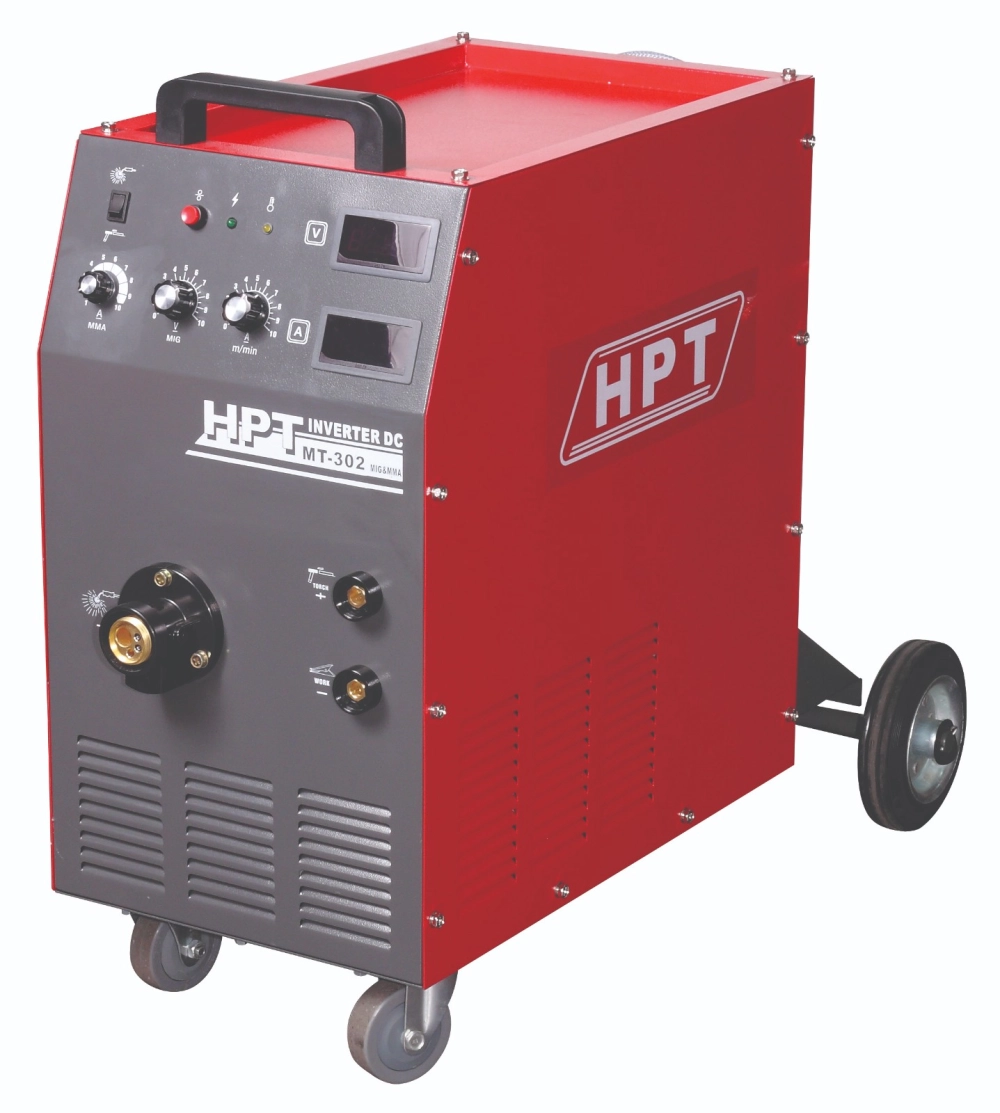

HPT INVERTER MIG WELDING MACHINE MT302i

MIG / MAG WELDER  (IGBT – INSULATED GATE BIPOLAR TRANSISTOR)

Features:

• Excellent MIG / MAG welding
• Constant voltage output
• Perfect for carbon steel, stainless and aluminum welding
• The electronic reactor, provide stable welding output
• Input voltage compensation (±18%)
• Low input current draw
• Digital display for precision and easy view


  SPECIFICATION	UNIT	MT 302I
  Input Voltage	VAC	415, 1Ø, 50 / 60Hz
  Rated Voltage	%	± 18
  Rated Input	KVA	MIG: 10.4; STICK: 6.8
  	KW	MIG: 7.8; STICK: 5.0
  Power Factor	%	75
  Efficiency	%	85
  Open Circuit Voltage	VDC	50 (± 5 ) @ 220V
  Max Output Current	ADC	MIG: 40 – 250
  		STICK: 20 – 160
  Output Voltage	VDC	MIG: 16 – 26.5
  		STICK: 26:4
  Duty Cycle at 10min / 40c	%	60
  Welding Process	—	MIG / STICK
  Wire Diameter	Ø	0.6 / 0.8 / 1.0
  Wire Feed Speed	M/min	1.5 – 15
  Motor Voltage	DCV	24
  Heater Regulator Voltage	V	220
  Dimension (W*D*H)	mm	440 x 760 x 640
  Weight	KG	34
