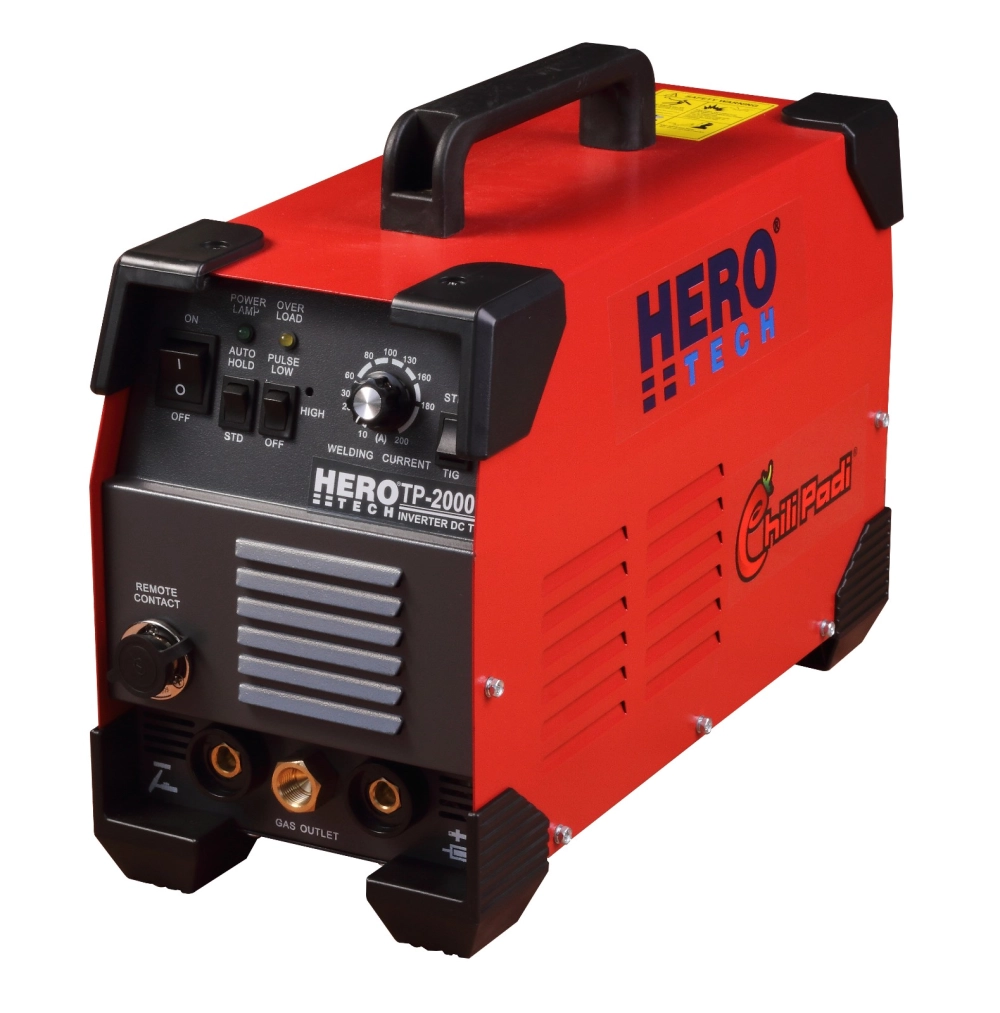

HERO TECH INVERTER TIG WELDING MACHINE TP2000P

TIG SERIES
Features:

• Constant output by digital control inverter
• High reliable PC Board complete with a wide range of welding current
• High-frequency DC arc starting with pulse control
• Continuous pulse adjustment for automatic welding
• Multiple circuit protection
• Applicable for stainless steel industries

• SPECIFICATION	TP – 2000P
  Power Voltage (VAC)	220, 1Ø, 50/60Hz
  Rated Voltage (%)	±15
  Rated Input Current (A)	4.5
  Power Capacitance (KVA)	10 – 200
  Rated Output Current (A)	43
  Open Circuit Voltage (V)	10 – 18
  Rated Output Voltage (V)	0.1
  Pre Flow Time (Sec)	2.5 / 5
  Post Flow Time (Sec)	0.1
  MMA Electrode Diameter (mm)	Max. 2.6
  Pulse Frequency (Hz)	LOW: 0.9
  	HIGH: 10
  Pulse Duty Cycle (%)	50
  Efficiency (%)	85
  Duty Cycle (%)	35
  Power Factor (%)	93
  Insulation Class (Level)	B
  IP Rating (Level)	IP21S
  Dimension (W*D*H) mm	365*172*250
  Weight (KG)	8
