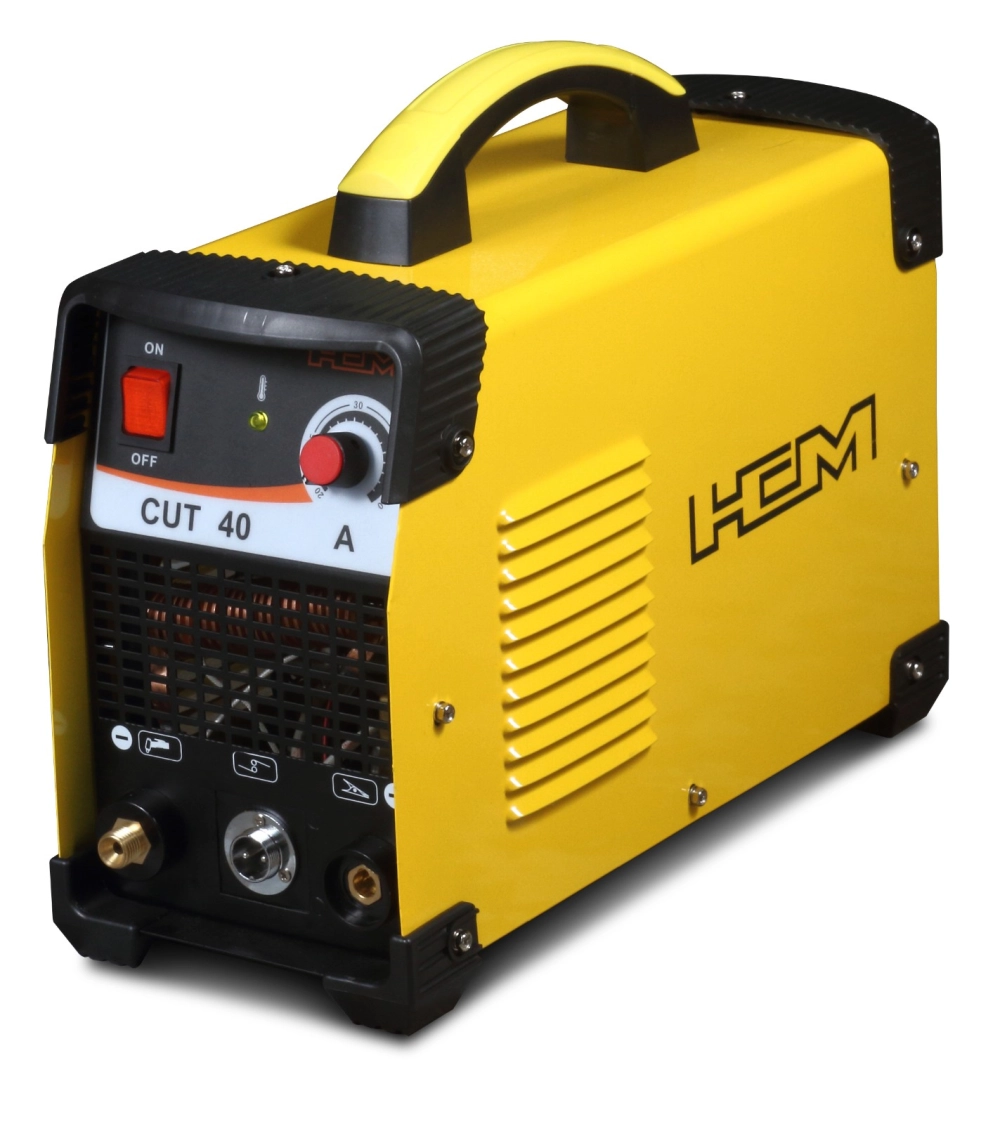

HCM INVERTER PLASMA CUTTING MACHINE CUT40

PLASMA SERIES
Description:

• Increased cutting capacity, compared with oxy-acetylene cutting, cutting speed increased 1.8 times
• Effective and economical cutting capacity both in speed and thickness
• Able to cut stainless steel, carbon steel, alloy steel, copper, aluminium and etc
• Uses low-cost compressed air
• Optional professional cutting torch, improve cutting ability more than twice
• Digitally-controlled inverter power for constant output

  SPECIFICATIONS	UNIT	CUT-40
  Input Voltage	VAC	220, 1Ø, 50/60Hz
  Rated Voltage	%	±15
  Rated Input Power	KVA	4.8
  Rated Duty Cycle	%	60
  Efficiency	%	80
  Power Factor	%	64
  Output Current	ADC	20 – 40
  Output Voltage	VDC	96
  Open Circuit Voltage	VDC	265
  Air Flow	M / Min	0.12 – 0.15
  Air Pre-Flow	SEC	0.1
  Max. Cutting Thickness	MM	12
  Perfect Cutting Thickness	MM	6
  Control	–	STANDARD
  Arc Starting	–	Contact Starting
  Insulation Class	Level	B
  IP Rating	Level	IP21S
  Dimension (W x D x H)	MM	390 x 160 x 250
  Weight	KG	8
