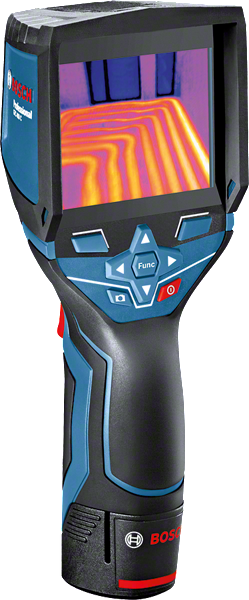

GTC400 C Professional Thermo Camera

Heat vision camera with integrated visualization of temperature differences

• Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
• Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
• Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

• Additional data

  Battery voltage

  12.0 V

  Measurement range

  -10 °C to +400 °C

  Measuring accuracy of IR

  ± 3.0 °Cᵇ

  Measuring application

  Thermal image

  Data transfer

  MicroUSB, Wi-Fi

  Thermal sensitivity (NETD)

  <50 mK

  Size of IR sensor

  160 Pixel x 120 Pixel

  Resolution

  0.1 °C

  Number of measuring points

  19,200

  Field of view (FOV)

  53×43 °

  Power supply and runtime

  4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V

  Frame buffer (number of images)

  500

  Memory type

  Internal memory

  File format of image

  .jpg

  Dust and splash protection

  IP 53

  Weight

  0.54 kg

  Size of display

  3,5″

  Operating temperature

  -10 – 45 °C

  Storage temperature

  -20 – 70 °C

  Focus distance, minimum

  0.3 m
