GIM 120 Professional Digital Inclinometer

Longer for maximum precision

• Measures precise tilts in degrees, percent or millimetres/metres
• Direction arrows and audible signals at 0° and 90° for easy alignment
• Measured values automatically turn on the display when working overhead

• Additional data

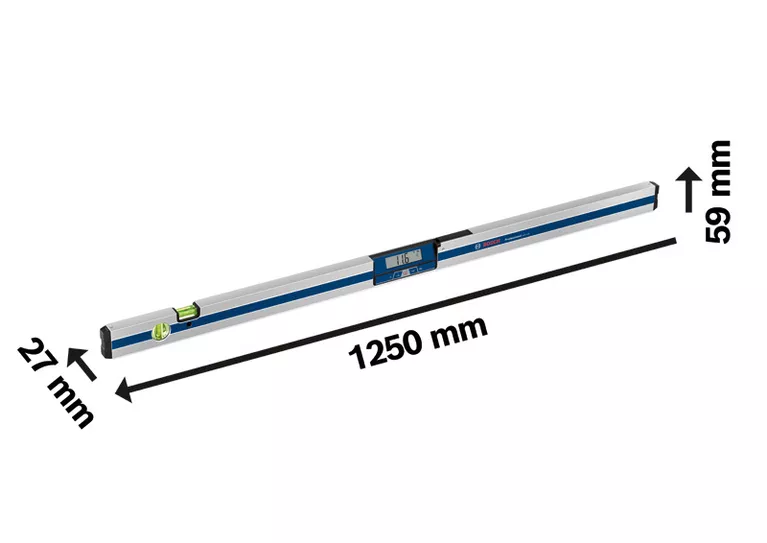

  Length

  120 cm

  Measurement range

  0 – 360° (4 x 90°)

  Electronics measurement accuracy 0°/90°

  ± 0.05°

  Electronics measuring accuracy at 1– 89°

  ± 0.2°

  Measurement accuracy, vials

  ± 0.057° = ± 1 mm/m

  Power supply, inclination measurement

  1 x 9 V 6LR61

  Operating duration, inclination measurem., approx.

  200 h

  Weight approx.

  1.3 kg

  Units of measurement

  °, %, mm/m
