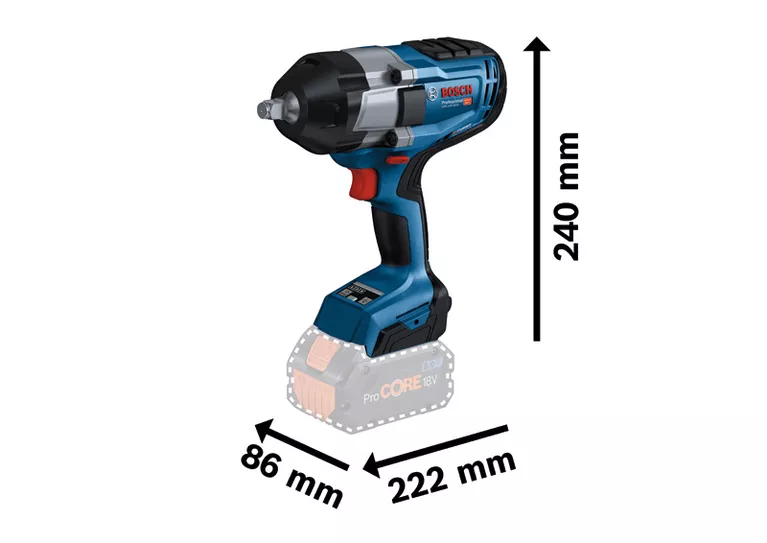

GDS18V-1050 H Professional Cordless Impact Wrench

Full power at its best: 3/4″ high torque impact wrench with BITURBO Brushless technology

• Impressive power with cordless freedom thanks to ProCORE 18V batteries and brushless motor
• High performance motor with a tightening torque of 1,050 Nm and a breakaway torque of up to 1,700 Nm
• Ideal versatility and controlled power due to 3-speed/torque settings

• Additional data

  Battery voltage

  18.0 V

  Torque, max.

  1,050 Nm

  No-load speed

  0 rpm

  Tool holder

  3/4” Square

  Torque, max. (hard screwdriving applications)

  1,050 Nm

  Breakaway torque, max.

  1,700 Nm

  Torque adjustment range, min./max., 1st level

  0/350 Nm

  Torque adjustment range, min./max., 2nd level

  0/750 Nm

  Torque adjustment range, min./max., 3rd level

  0/1050 Nm

  No-load speed (1st level)

  0 rpm

  No-load speed (2nd level)

  0-1,200 rpm

  No-load speed (3rd level)

  0-1,750 rpm

  Torque settings

  3

  Weight excl. battery

  2.9 kg

  Impact rate

  0-2,600 bpm

  Impact rate (1st level)

  0-1,600 bpm

  Impact rate (2nd level)

  0-2,400 bpm

  Impact rate (3rd level)

  0-2,600 bpm

  Total vibration values (Tightening screws and nuts of maximum permitted size)

  Vibration emission value ah

  13.5 m/s²

  Uncertainty K

  1.5 m/s²

  Tightening screws and nuts of maximum permitted size

  Vibration emission value ah

  13.5 m/s²

  Uncertainty K

  1.5 m/s²

  GDS 18V-1050 H Professional: Further information

  Product Highlights

  The GDS 18V-1050 H Professional is the outstanding 3/4″ impact wrench with brushless motor for the most diverse fields of application. Its BITURBO Brushless technology combines corded power with cordless freedom fully maximised for ProCORE 18V batteries. Whenever heavy-duty performance is needed, the new impact mechanism provides a tightening Torque of 1,050 Nm and breakaway torque of 1,700 m for particularly challenging working environments. The high versatility in power controlling is ensured by the 3-speed/torque settings that allow adjustments to the respective work requirements.

  Equipment & Application

  The main areas of GDS 18V-1050 H Professional are meal applications (M10-M24) like structural steel construction, metal assembly, pipe fitting, truck maintenance, and wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V system).
