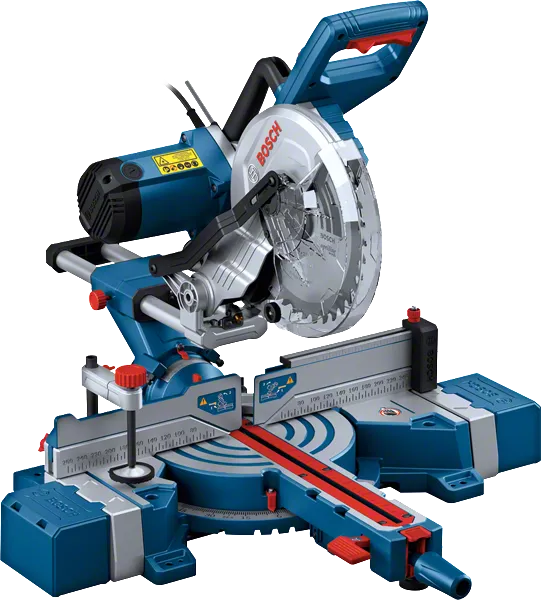

GCM 254 D Professional Mitre Saw

Long-lasting accuracy in every cut

• Consistently accurate cuts with the help of a highly visible laser line
• Better support for various material cutting provided by detachable box extension
• Easier multiple repeating cuts thanks to length gauge
• Larger cuts with superior precision with 310 mm sliding capacity

• Additional data

  Rated input power

  1,800 W

  Saw blade diameter

  254 mm

  Mitre setting

  47 ° L / 52 ° R

  Bevel setting

  45 ° L / 45 ° R

  Saw blade bore diameter

  25.4 mm

  Cutting capacity, 0°

  90 x 310 mm

  Cutting capacity, 45° mitre

  90 x 210 mm

  Cutting capacity, 45° bevel

  45 x 310 mm

  Tool dimensions (width x length x height)

  574 x779 x645 mm

  No-load speed

  4,800 rpm

  Weight

  17.9 kg

  GCM 254 D Professional: Further information

  Product Highlights

  The GCM 254 D Professional corded miter saw is tough, best-in-class, and designed for easy operation, accurate repetitive cutting, and a long life. For superior precision, a highly visible laser indicates the cutting line and easily allows consistent cuts. Cutting long and large materials with higher stability and accuracy is supported by the detachable box extension. Convenient easy cutting of the same lengths is provided by the length gauge. Lager cuts with superior precision are supported by the 310 mm sliding capacity.

  Equipment & Application

  The GCM 254 D miter saw is built for long life with repetitive, accurate cutting of wood and aluminium, and is ideal for carpenters, glaziers, roofers, and other professional trades.
