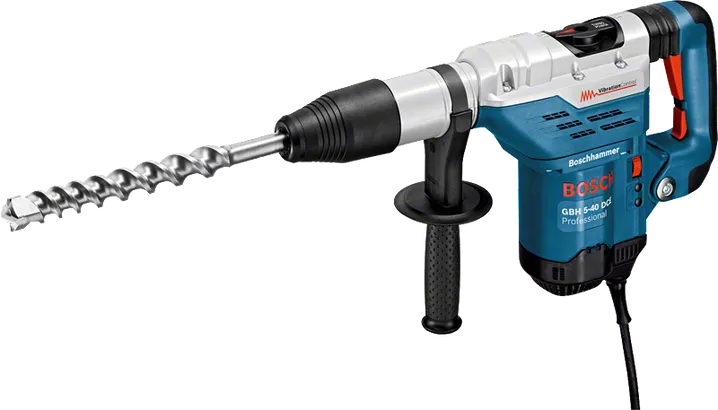

GBH5-40 DCE Professional Rotary Hammer with SDS max

The fast all-rounder with Vibration Control

• Fastest drilling rate in its class due to 1150 W motor and powerful hammer mechanism
• SDS max comfort for easy and fast tool changes with one hand
• Vibration Control (10 m/s² for drilling, 8 m/s² for chiselling) ensures convenient working, even in time-intensive applications

• Performance data

  Impact rate at rated speed

  1,500 – 2,980 bpm

  Rated speed

  165 – 330 rpm

  Additional data

  Rated input power

  1150 W

  Impact energy

  8.8 J

  Tool holder

  SDS max

  Voltage, electrical

  240 V

  Weight

  6.8 kg

  Drilling range

  Drilling dia. concrete, hammer drill bits

  12 – 40 mm

  Opt. appl. range concrete, hammer drill bits

  18 – 32 mm

  Drilling dia. concrete, breakthrough drill bits

  45 – 55 mm

  Drilling diameter in concrete with core cutters

  40 – 90 mm

  Total vibration values (Hammer drilling in concrete)

  Vibration emission value ah

  13.5 m/s²

  Uncertainty K

  1.5 m/s²

  Total vibration values (Chiselling in concrete)

  Vibration emission value ah

  10.5 m/s²

  Uncertainty K

  1.5 m/s²

  Hammer drilling in concrete

  Vibration emission value ah

  13.5 m/s²

  Uncertainty K

  1.5 m/s²

  Chiselling in concrete

  Vibration emission value ah

  10.5 m/s²

  Uncertainty K

  1.5 m/s²

  GBH 5-40 DCE Professional: Further information

  Product Highlights

  The GBH 5-40 DCE Professional is uniquely designed within Bosch’s SDS max corded rotary hammer category for comfortable handling and reduced user fatigue in extensive applications. Its Vibration Control and lightweight design enable effortless and continuous work in time-intensive tasks. The rotary hammer is also built for durability, featuring robust metal components and an optimised lubrication system. Its strong motor enables the delivery of 8.8 J of impact energy for a fast drilling progress and high material removal rate.
