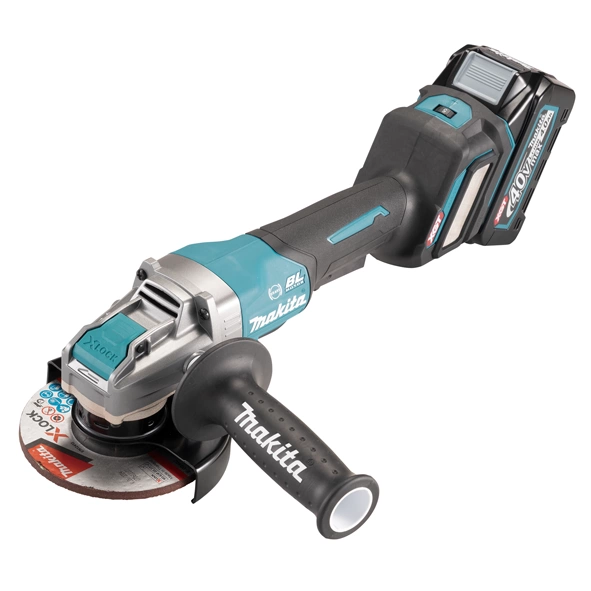

Features
- X-LOCK for toolless accessory changes
- X-LOCK mechanism enables to install/remove X-LOCK wheels with just a single action without tool; minimizes down-time between wheel changes; minimizes over-tightening and loosening of wheels
- X-LOCK wheel can be easily removed simply by pulling up the lever
- New toolless wheel cover allows for fast and easy angle adjustment and installation/removal of wheel cover
- Outperforming performance and efficiency
- Genuine solution for high demand industrial applications
- Excellent in continuous heavy-duty work
- Soft grip provides increased comfort on the job
- Paddle switch; Easy-to-hold slim grip achieved by optimized parts allocation; Grip circumference smaller than DGA408 series
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
Specification

Wheel Diameter | 125 mm (5″) |
Max Wheel Thickness | 6 mm (1/4″) |
Hole Diameter | 22.23 mm (7/8″) |
No Load Speed (RPM) | 3,000 – 8,500 |
Dimensions (L x W x H) | 433 x 140 x 163 mm (17 x 5-1/2 x 6-3/8″) |
Net Weight | 3.0 – 5.4 kg (6.6 – 11.9 lbs.) |
* Recommended batteries 2.5 Ah, 4.0 Ah, 4.0 Ah (F), 5.0 Ah
Standard Equipment Available Options |
