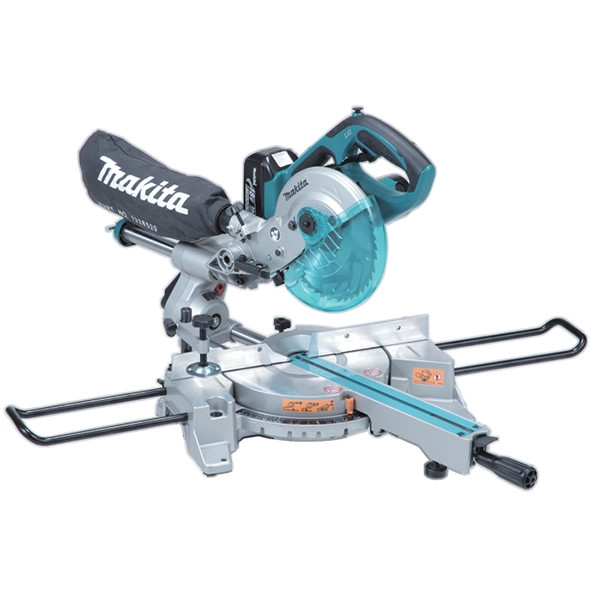

DLS713Z 190 mm (7-1/2″) 18V Cordless Slide Compound Miter Saw
WhatsApp us
Features
- Four steel rail sliding system increases rigidity to produce superior accurate cuts.
- Holders are provided on both sides of the tool to hold long workpieces horizontally.
- Direct drive gearbox for increased cutting efficiency and less maintenance.
- Electric brake for maximum productivity.
- Dust bag for a cleaner work environment.
Specification
| Blade Diameter | 190 mm (7-1/2″) |
| Miter Angle | 47° L / 57° R |
| Bevel Angle | 45° L / 5° R |
| Max Cutting Capacity | 90°: 52 x 300 mm (2-1/16 x 11-3/4″) |
| No Load Speed (RPM) | 2200 |
| Dimensions (L x W x H) | 655 x 430 x 454 mm (25-3/4″ x 17″ x 17-7/8″) |
| Net Weight | 12.1 kg (26.7 lbs.) |
| Work Amount (approx.) | 300 pcs with BL1850B Sawing (Merbau Decking 90 x 19 mm) |
| Standard Equipment TCT Saw Blade (A-86147), Vertical Vise, Socket Wrench, Triangular Rule, Dust Bag, Holder Set Available Option |
|
