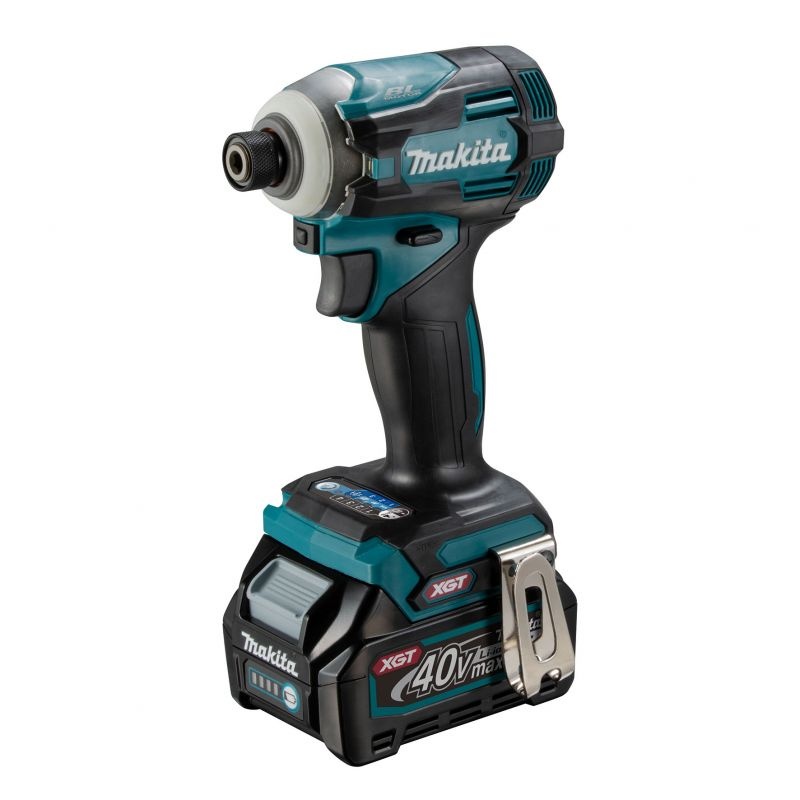

TD001GZ 40Vmax Cordless Impact Driver

WhatsApp us

Genuine solution for high demand industrial users.
Having excellent ability to perform heavy-duty continuous tightening; Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws.
Delivers up to 50% higher work speed than DTD171.
Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes).
One-touch speed selector provides precise fastening control for a wide range of applications.

Capacity	Machine Screw: M4 – M8 (5/32 – 5/16″) Standard Bolt : M5 – M16 (3/16 – 5/8″) High Strength Bolt: M5 – M14 (3/16 – 9/16″) Coarse Thread (in length): 22 – 125 mm (7/8″ – 4-7/8″)
Hex Shank	6.35 mm (1/4″)
Fastening Torque	Hard: 170 N·m (1,510 in. lbs.) Med: 50 N·m (440 in. lbs.) Soft: 20 N·m (180 in. lbs.)
Impacts Per Minute (IPM)	Max: 0 – 4,400 \| Hard: 0 – 3,600 \| Med: 0 – 2,600 \| Soft: 0 – 1,100 \| Wood: 0 – 4,400 \| Bolt (1): N/A \| Bolt (2): 0 – 4,400 \| Bolt (3): 0 – 4,400 \| T (1): N/A \| T (2): 0 – 2,600
Max Fastening Torque	220 N·m (1,950 in.lbs.)
No Load Speed (RPM)	Max: 0 – 3,700 \| Hard: 0 – 3,200 \| Med: 0 – 2,100 \| Soft: 0 – 1,100 \| Wood: 0 – 1,800 \| Bolt (1): 0 – 2,500 \| Bolt (2): 0 – 3,700 \| Bolt (3): 0 – 3,700 \| T (1): 0 – 2,400 \| T (2): 0 – 3,700
Dimensions (L x W x H)	120 x 86 x 245 mm (4-3/4 x 3-3/8 x 9-5/8″)
Net Weight	1.7 – 2.0 kg (3.7 – 4.4 lbs)
Work Amount (approx.)	800 pcs with BL4025 Coarse Thread Screw 65 mm
* Recommended batteries 2.0 Ah, 2.5 Ah, 4.0 Ah, 4.0 Ah (F) Standard Equipment Belt Clip Available Option GZ: Without Charger & Battery
