MUREX HIGH PRESSURE NITROGEN/ CNG/ H2 REGULATOR
WhatsApp us

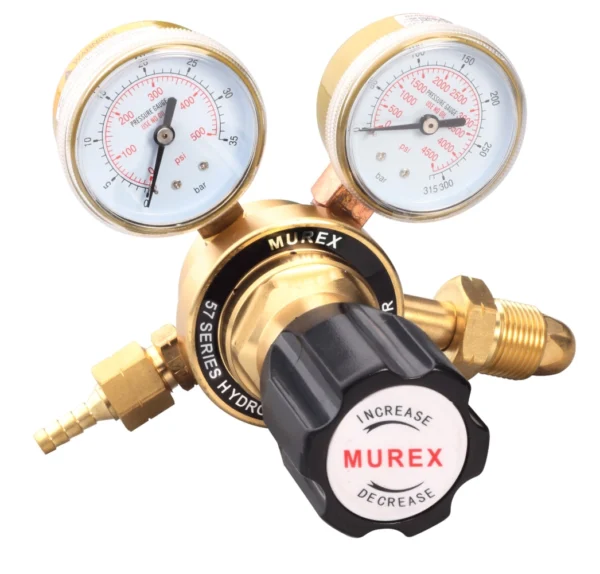

MUREX High Pressure Nitrogen/ CNG/ H2 Regulator 57 Series
High Pressure Nitrogen Regulator
- 2” gauges for easy reading.
- Stem type seat assembly for more reliable performance.
- Forged brass body.
- Housing cap are machined from ”A” brass for delivery pressure 250 psi.
- Sintered bronze inlet filter.
- Regulators verified by ECM, European standard EN ISO 2503:2009 and related to CE Directive 2014/68/EU (Pressure Equipment)
| SPECIFICATION | High Pressure Nitrogen Regulator |
| Gas Service | Ar, He, N2, O2, AIR |
| Model | 57AR |
| Max. Inlet Pressure (PSI) | 2900 |
| Max. Delivery Pressure (PSI) | 250 |
| Inlet Pressure Gauge | 2 – 1/2, 4500PSI |
| Outlet Pressure Gauge | 2 – 1/2, 500PSI |
| Inlet Connection | G5/8M |
| Outlet Connection | 3/8RH |
| Weight (KG) | 1.50 |
High Pressure CNG Regulator
- 2” gauges for easy reading.
- Stem type seat assembly for more reliable performance.
- Forged brass body.
- Housing cap are machined from ”A” brass for delivery pressure 200 psi.
- Sintered bronze inlet filter.
- Regulators verified by ECM, European standard EN ISO 2503:2009 and related to CE Directive 2014/68/EU (Pressure Equipment)
| SPECIFICATION | High Pressure CNG Regulator |
| Gas Service | Compressed Natural Gas (CNG) |
| Model | 57AR |
| Max. Inlet Pressure (PSI) | 2900 |
| Max. Delivery Pressure (PSI) | 200 |
| Inlet Pressure Gauge | 4500PSI |
| Outlet Pressure Gauge | 500PSI |
| Inlet Connection | G5/8F |
| Outlet Connection | 3/8RH |
| Weight (KG) | 1.50 |
High Pressure H2 Regulator
- 2” gauges for easy reading.
- Stem type seat assembly for more reliable performance.
- Forged brass body.
- Housing cap are machined from ”A” brass for delivery pressure 200 psi.
- Sintered bronze inlet filter.
- Regulators verified by ECM, European standard EN ISO 2503:2009 and related to CE Directive 2014/68/EU (Pressure Equipment)
| SPECIFICATION | High Pressure H2 Regulator |
| Gas Service | Hydrogen (H2) |
| Model | 57AR |
| Max. Inlet Pressure (PSI) | 2900 |
| Max. Delivery Pressure (PSI) | 200 |
| Inlet Pressure Gauge | 4500PSI |
| Outlet Pressure Gauge | 500PSI |
| Inlet Connection | G5/8LH |
| Outlet Connection | 3/8LH |
| Weight (KG) | 1.50 |
