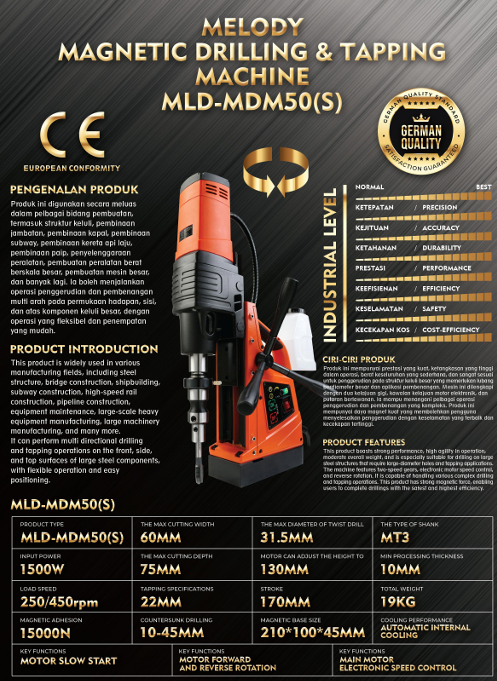

Melody Magnetic Drilling & Tapping Machine MLD-MDM50S

Melody Magnetic Drilling & Tapping Machine MLD-MDM50S

MAX CUTTING : 60MM

MAX DIAMETER OF TWIST DRILL :31.5MM

THE TYPE OF SHANK :MT3

INPUT POWER :1500W

THE MAX CUTTING DEPTH : 75MM

MOTOR CAN ADJUST THE HEIGT TO : 130MM

MIN PROCESSING THICKNESS :10MM

LOAD SPEED : 240/450RPM

TAPPING SPECIFICATIONS :22MM

COUNTERSUNK DRILLING : 10-45MM

STROKE : 170MM

TOTAL WEIGHT : 19KG

MAGNETIC ADHESION :15000N

MAGNETIC BASE SIZE: 210X100X45MM

COOLING PERFORMANCE : AUTOMATIC INTERNAL COOLING

KEY FUNCTIONS : MOTOR FORWARD AND REVERSE ROTATION
