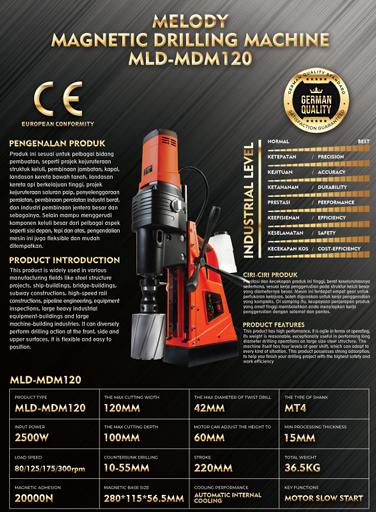

Melody Magnetic Drilling & Tapping Machine MLD-MDM120S

Melody Magnetic Drilling & Tapping Machine MLD-MDM120S

MAX CUTTING : 120MM

MAX DIAMETER OF TWIST DRILL :42MM

THE TYPE OF SHANK :MT4

INPUT POWER :2500W

THE MAX CUTTING DEPTH : 100MM

MOTOR CAN ADJUST THE HEIGT TO : 60MM

MIN PROCESSING THICKNESS :15MM

LOAD SPEED : 80/125/175/300RPM

TAPPING SPECIFICATIONS :33MM

COUNTERSUNK DRILLING : 10-55MM

STROKE : 220MM

TOTAL WEIGHT : 36.5KG

MAGNETIC ADHESION :20000N

MAGNETIC BASE SIZE: 280X115X56.5MM

COOLING PERFORMANCE : AUTOMATIC INTERNAL COOLING

KEY FUNCTIONS : MOTOR FORWARD AND REVERSE ROTATION
