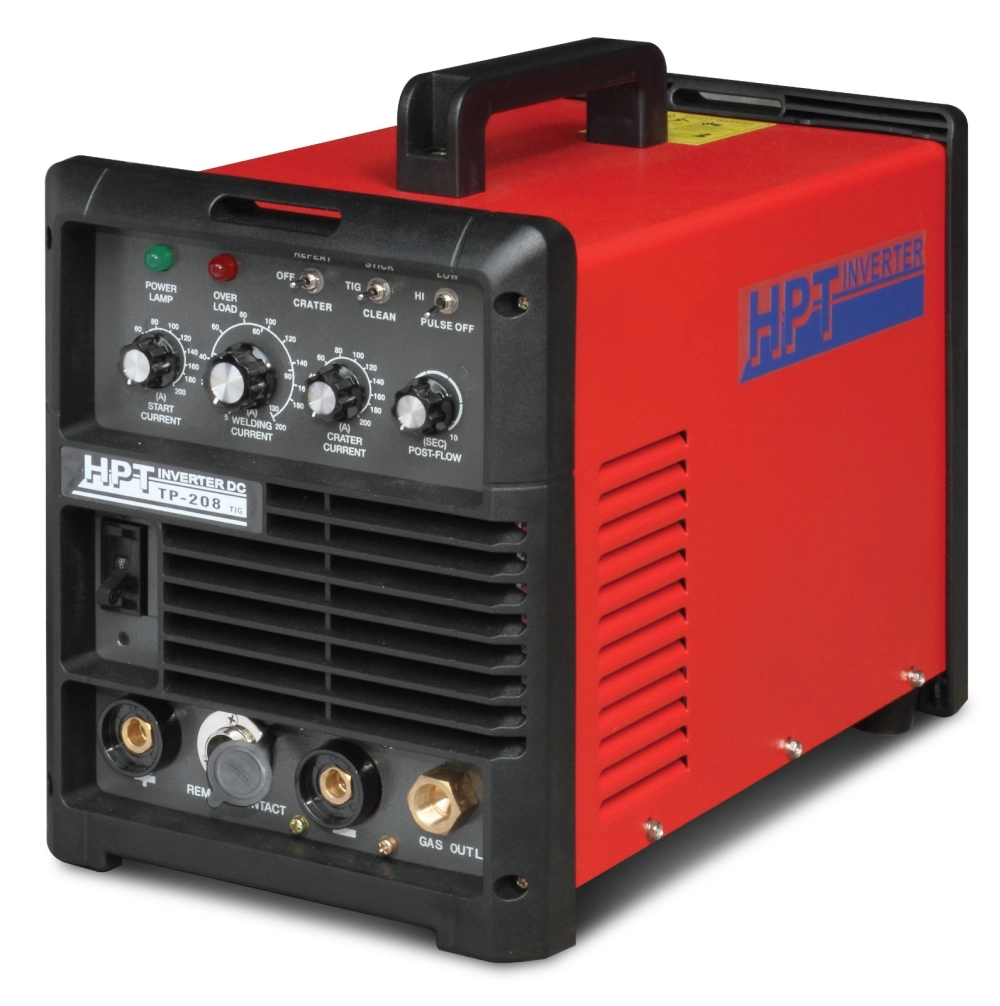

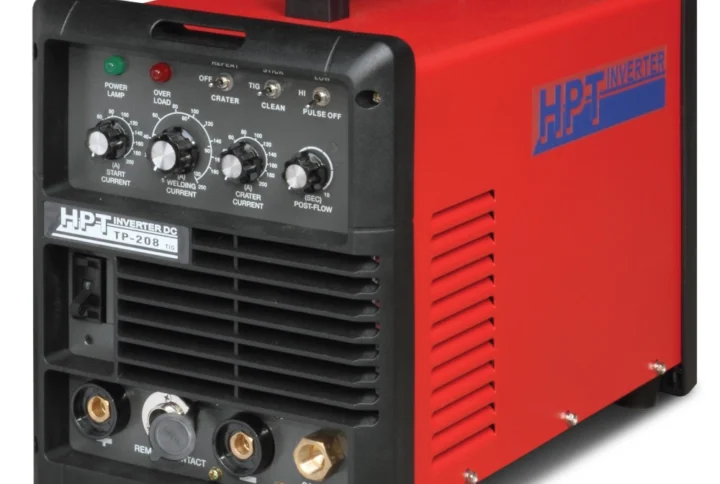

HPT INVERTER TIG WELDING MACHINE TP208
WhatsApp us
| SPECIFICATION | UNIT | TP – 208 | |
| Rated Input Voltage | VAC | 240, ±18 % | |
| Rated Frequency | Hz | 50 / 60 | |
| Input At Rated Load | TIG | KVA | 7.5 |
| KW | 5 | ||
| STICK | KVA | 6.7 | |
| KW | 4.5 | ||
| Rated Output Currrent | TIG | VDC | 18 |
| STICK | VDC | 25.2 | |
| Rated Output Current | TIG | ADC | 5 – 200 |
| STICK | ADC | 5 – 130 | |
| CLEAN | ADC | 05-Oct | |
| Open Circuit Voltage (O.C.V) | VDC | APPROX. 100 | |
| Duty Cycle At (A.W.S. STD) | VDC | 40% at 40c | |
| Initial Current | A | 5 – 200 | |
| Crater Current | A | 5 – 200 | |
| Pulse Frequency | Hz | LOW: 1 | |
| HIGH: 15 | |||
| Pre Flow Time | SEC | 0.09 | |
| Post Flow Time | SEC | 2.0 – 10.0 | |
| Power Factor | — | 93 | |
| Efficiency | % | 80 | |
| Pulse Duty | % | — | |
| Dimension (W*D*H) | MM | 200*400*240 | |
| Weight | KG | 12.5 | |
