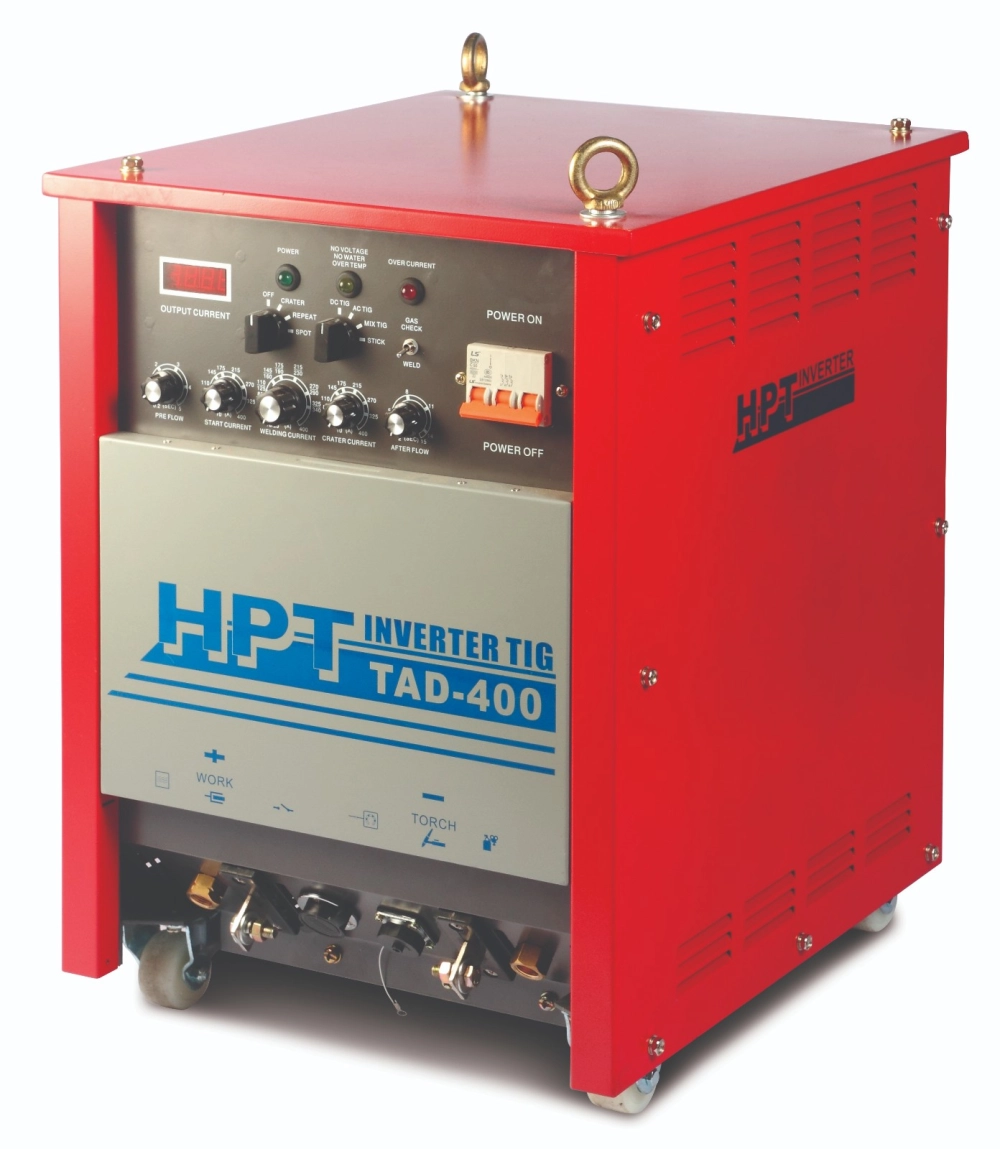

HPT INVERTER TIG WELDING MACHINE TAD400
WhatsApp us
| SPECIFICATIONS | UNIT | TAD-400 | ||
| Rated Output Voltage | A | 400 | ||
| Rated Input Voltage | V | 3 Phase 340V – 493V | ||
| Input Frequency | Hz | 50 / 60 | ||
| Output Current | Three Phase | TIG | A | DC: 10 – 400 |
| AC: 25 – 400 | ||||
| STICK | A | DC: 10 – 250 | ||
| Output Voltage | Three Phase | TIG | V | DC: 26 |
| AC: 26 | ||||
| STICK | V | DC: 30 | ||
| Input At Rated Load | Three Phase | TIG | KVA / KW | DC: 14.2 / 13.3 |
| AC: 14.2 / 13.3 | ||||
| STICK | KVA / KW | DC: 12.5 / 11.7 | ||
| Rated Duty Cycle (At A.W.S STD) | % | 80% 40°C | ||
| Open Circuit Voltage (O.C.V.) | V | DC: 67 | ||
| AC: 145 | ||||
| Start Current (Initial Current) | A | DC: 10 – 400 | ||
| AC: 25 – 400 | ||||
| Crater Current | A | DC: 10 – 400 | ||
| AC: 25 – 400 | ||||
| Pulse Current | A | 10 – 400 | ||
| Upslope Time | SEC | 0.1 – 5 | ||
| Downslope Time | SEC | 0.1 – 5 | ||
| ARC Spot Time | SEC | 0.1 – 5 | ||
| PRE Flow Time | SEC | 0.2 – 5 | ||
| Mix Frequency | Hz | 0.7 – 10 | ||
| Mix AC DC Ratio | % | 20 – 80 | ||
| Post Flow | SEC | Feb-15 | ||
| Low Pulse Frequency | Hz | 0.5 – 27 | ||
| MID Pulse Frequency | Hz | 7.5 – 500 | ||
| Pulse Frequency | % | 20 – 80 | ||
| Cleaning / Penetration Ratio | % | 20 – 80 | ||
| Crater Function | – | On / Off – Repeat | ||
| Remote Control | – | Optional (8M Cable) | ||
| Dimension (W*D*H*) | MM | 410*510*620 | ||
| Weight | KG | 65 | ||
