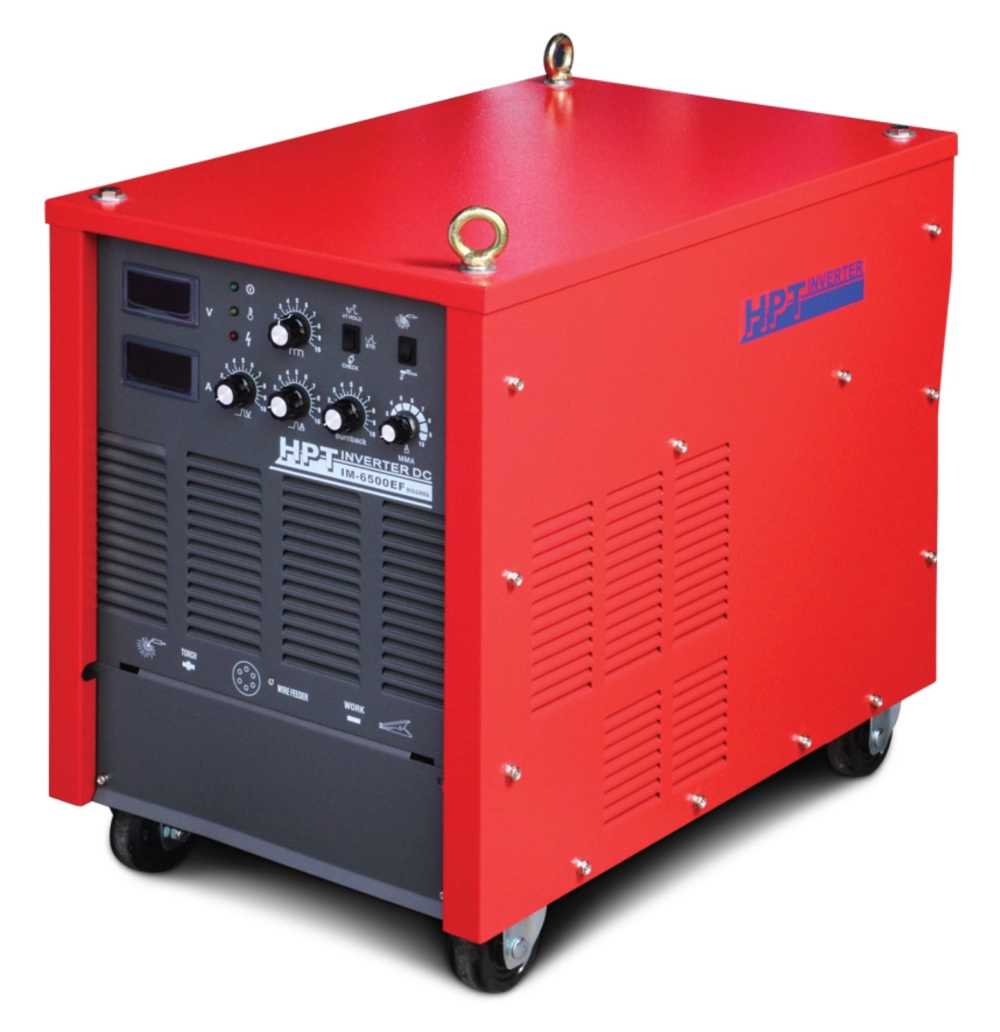

HPT INVERTER MIG WELDING MACHINE IM6500EF
WhatsApp us
| Specification | UNIT | IM – 6500EF | |
| Input Voltage | VAC | 415, 3Ø, 50/60Hz | |
| Rated Voltage | % | ±15 | |
| Rated Input | MIG | KVA | 29.4 |
| KW | 21.5 | ||
| STICK | KVA | 30.8 | |
| KW | 22.5 | ||
| GOUGING | KVA | 30.8 | |
| KW | 22.5 | ||
| Output Current | MIG | ADC | 50 – 650 |
| STICK | 50 – 650 | ||
| GOUGING | 50 – 650 | ||
| Output Voltage | MIG | VDC | 17.5 – 39 |
| Open Circuit Voltage | V | 68 | |
| Duty Cycle | % | 50 | |
| Continued Output Current | ADC | 650 |
WELDING METHOD – MIG / MAG
| Wire Diameter | Ø | 0.8 / 1.0 / 1.2 / 1.6 / 2.0 |
| Pre – Flow Time | SEC | 0.5 |
| Post – Flow Time | SEC | 7 |
| Perfect Welding Thickness | MM | 0.8< |
| Insulation Class | LEVEL | H |
| IP Rating | LEVEL | IP21S |
| Dimension – W*D*H | mm | 430 x 650 x 625 |
| Weight | Kg | 75 |
| Specification | Unit | WIRE FEEDER |
| Input Voltage | VDC | 24 |
| Filter Wire Size | MM | 0.8 – 2.0 |
| Wire Feed Speed | M / min | 1.5 – 18 |
| Dinmension – W*D*H | MM | 480 cx 205 x 300 |
| Weight | KG | 9.5 |
