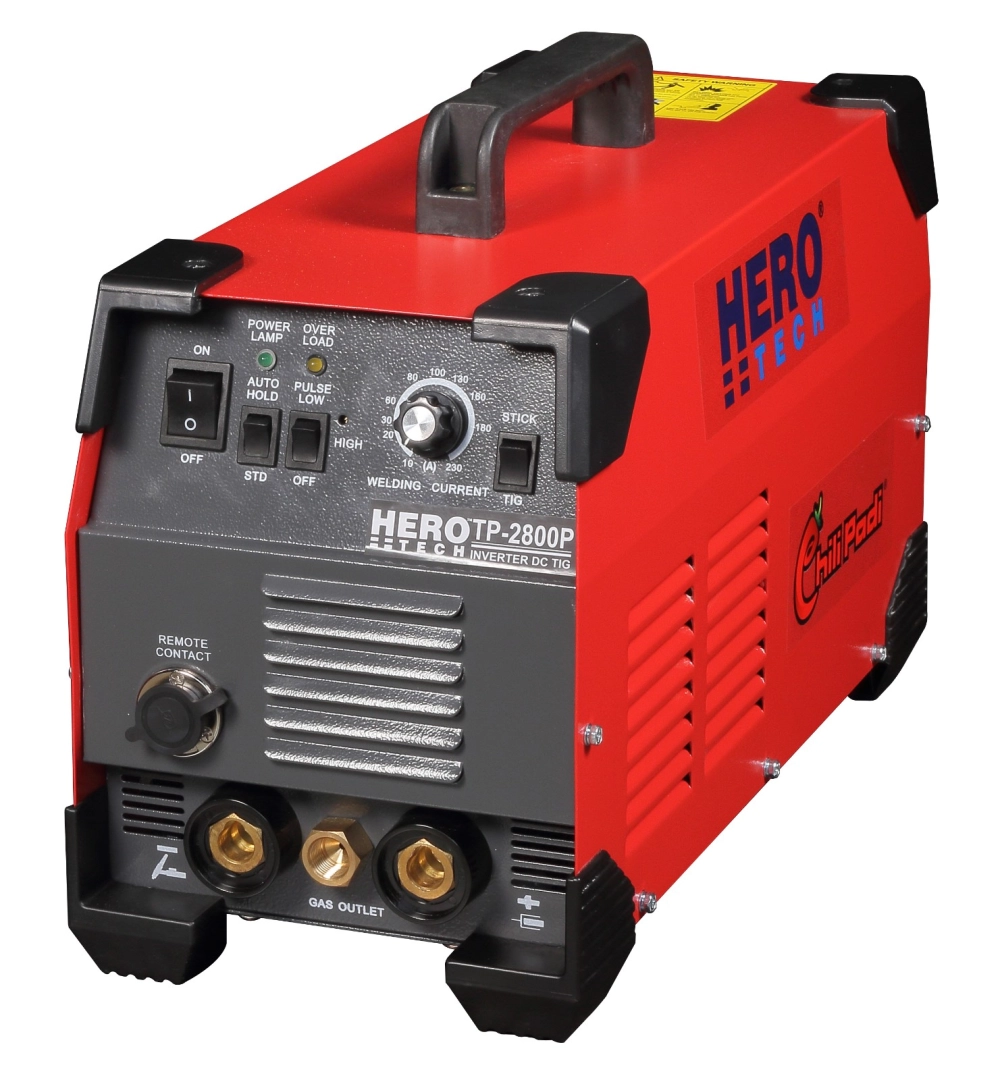

HERO TECH INVERTER TIG WELDING MACHINE TP2800P
WhatsApp us
TIG SERIES
Features:
- Constant output by digital control inverter
- High reliable PC Board complete with a wide range of welding current
- High-frequency DC arc starting with pulse control
- Continuous pulse adjustment for automatic welding
- Multiple circuit protection
- Applicable for stainless steel industries
| SPECIFICATION | TP – 2800P |
| Power Voltage (VAC) | 220, 1Ø, 50/60Hz |
| Rated Voltage (%) | ±15 |
| Rated Input Current (A) | 6.9 |
| Power Capacitance (KVA) | 10 – 250 |
| Rated Output Current (A) | 42 |
| Open Circuit Voltage (V) | 10 – 19.2 |
| Rated Output Voltage (V) | 0.1 |
| Pre Flow Time (Sec) | 2.5 / 5 |
| Post Flow Time (Sec) | 0.1 |
| MMA Electrode Diameter (mm) | Max. 3.2 |
| Pulse Frequency (Hz) | LOW: 0.9 |
| HIGH: 10 | |
| Pulse Duty Cycle (%) | 50 |
| Efficiency (%) | 85 |
| Duty Cycle (%) | 40 |
| Power Factor (%) | 93 |
| Insulation Class (Level) | H |
| IP Rating (Level) | IP21S |
| Dimension (W*D*H) mm | 520*280*340 |
| Weight (KG) | 18 |
