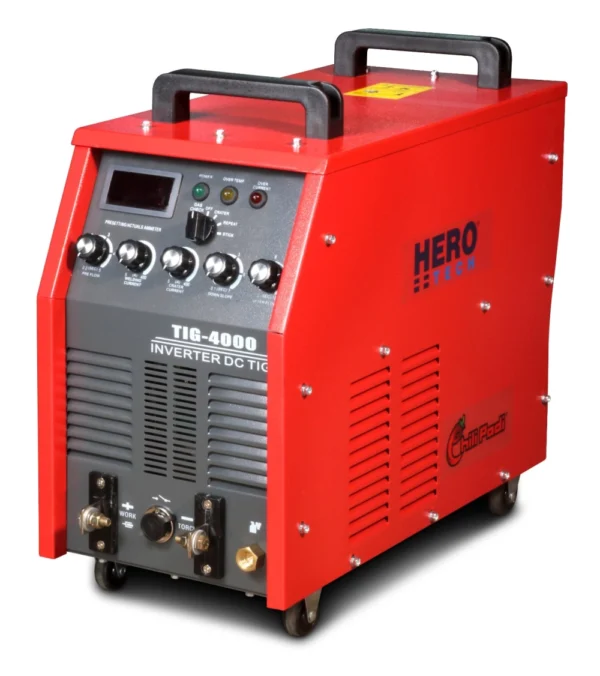

HERO TECH INVERTER TIG WELDING MACHINE TIG4000

TIG SERIES
Features:

• Constant output by digital control inverter
• High reliable PC board complete with a wide range of welding current
• High-frequency DC arc starting with pulse control
• Continuous pulse adjustment for automatic welding
• Multiple circuits protection


  SPECIFICATION	MODEL	TIG – 4000
  Rated Input Voltage	VAC	415
  Rated Input Phase	Phase	3Ø
  Rated Frequency	Hz	50 / 60
  Input At Rated Load	KW / KVA	13.1 / 19.8
  Rated Output Current	A	DC TIG: 5 – 400
  		STICK: 30 DC
  Rated Output Voltage	VDC	TIG: 26 DC
  		STICK: 30 DC
  Open Circuit Voltage	VDC	65
  Rated Duty Cycle	%	40
  Insulation Level	–	H
  IP Rating level	–	IP21S
  Post-Flow Time	SEC	0.2 – 5
  After-Flow Time	SEC	Feb-15
  Crated / Repeat	–
  Pulse	–	N/A
  Upslope Time	SEC	0.1
  Down Slow Time	SEC	0.1 – 7
  Dimension (W*D*H)	mm	554*272*460
  Weight	KG	31
