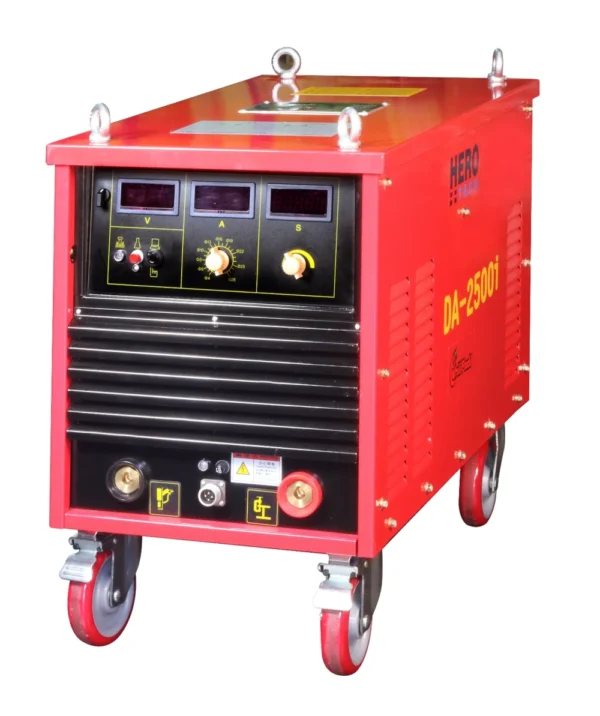

HERO TECH INVERTER DRAW ARC STUD WELDING MACHINE
WhatsApp us
INVERTER DRAW ARC STUD WELDING
- Latest IGBT tech
- Just 1/3 weight of thyristor type
- Modular design, easy and fast to provide after service
- Wide voltage range
- Electricity save 30%
| Specification | DA – 1000i | DA – 1200i | DA – 1600i |
| Stud Range | Ø 4mm – 12mm | Ø 4mm – 16mm | Ø 4mm – 20mm |
| Welding Current | 200A – 1000A | 200A – 1200A | 200A – 1600A |
| Welding Speed | 0.1S – 3.0S | 0.1S – 3.0S | 0.1S – 3.0S |
| Input Power | Ø12 10pcs / min | Ø16 10pcs / min | Ø 20 10pcs / min |
| Input Capacity | 220V 50 / 60Hz 3Ph
415V 50 / 60Hz 3Ph |
220V 50 / 60Hz 3Ph
415V 50 / 60Hz 3Ph |
220V 50 / 60Hz 3Ph
415V 50 / 60Hz 3Ph |
| Power Switch | 35KW | 40KW | 50KW |
| Protection Switch | 63A | 63A | 100A |
| IP Rating | IP21 | IP21 | IP21 |
| Cooling Way | FAN | FAN | FAN |
| Size L x W x H | 880mm x 460mm x 588mm | 880mm x 460mm x 588mm | 880mm x 460mm x 588mm |
| Weight | 80kg | 90kg | 100kg |
| Specification | DA – 2000i | DA – 2500i | DA – 3150i |
| Stud range | Ø 4mm – 24mm | Ø 4mm – 28mm | Ø 4mm – 36mm |
| Welding current | 300A – 2000A | 300A – 2500A | 400 – 3150A |
| Welding time | 0.1S – 3.0S | 0.1S – 3.0S | 0.1S – 3.0S |
| Welding speed | Ø 24 10pcs / min | Ø 28 10pcs / min | Ø 36 10pcs / min |
| Input power | 220V 50 / 60Hz 3Ph
415V 50 / 60Hz 3Ph |
220V 50 / 60Hz 3Ph
415V 50 / 60Hz 3Ph |
220V 50 / 60Hz 3Ph
415V 50 / 60Hz 3Ph |
| Input capacity | 60KW | 80KW | 110KW |
| Power switch | 125A | 160A | 225A |
| Protection grade | IP21 | IP21 | IP21 |
| Cooling way | FAN | FAN | FAN |
| Size L x W x H | 880mm x 460mm x 588mm | 880mm x 460mm x 588mm | 880mm x 460mm x 980mm |
| Weight | 120kg | 135kg | 160kg |
