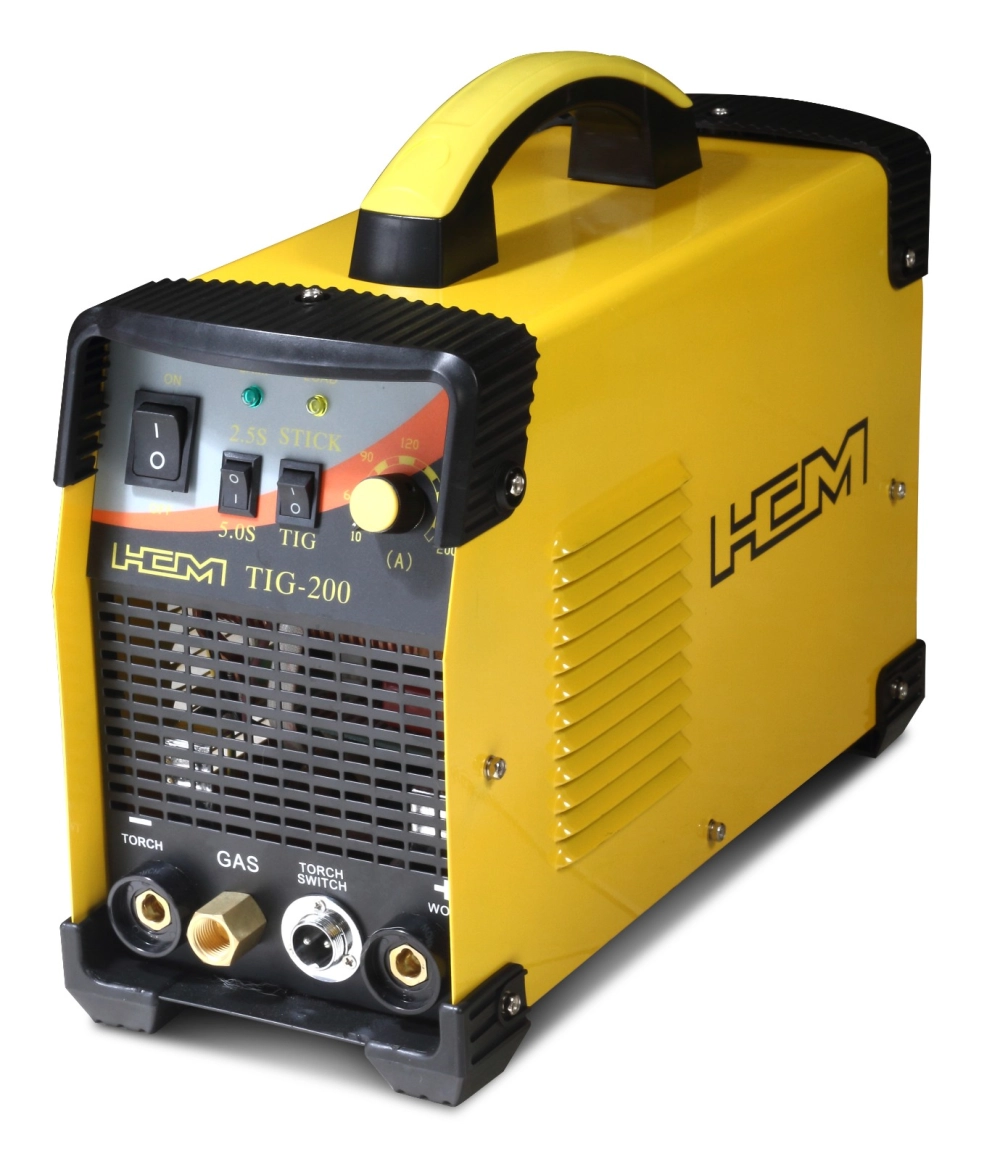

HCM INVERTER TIG WELDING MACHINE TIG200

TIG Series
Description:

• Excellent STICK/TIG welding
• Constant voltage output
• Perfect for carbon steel and stainless steel
• Electronic reactor, provide stable welding output
• Input voltage compensation (±15%)
• Small in size, light weight
• Easy to operate
• Low input current draw


  SPECIFICATIONS	UNIT	TIG-200
  Input Voltage	VAC	220 ±15%
  Input Frequency	Hz	50/60Hz
  Input Capacity	KVA	7.4
  Input Current	A	21
  Output Voltage	V	18
  Output Current Range	A	10 – 200
  Post-Flow Time	SEC	01-May
  Duty Cycle	%	60
  No Load Voltage	V	56
  No Load Loss	W	40
  Efficiency	%	85
  Power Factor	Ø	0.93
  Insulation Class	Level	B
  IP Rating	Level	IP23
  Dimension (W x D x H)	MM	395 x 162 x 250
  Weight	KG	8
