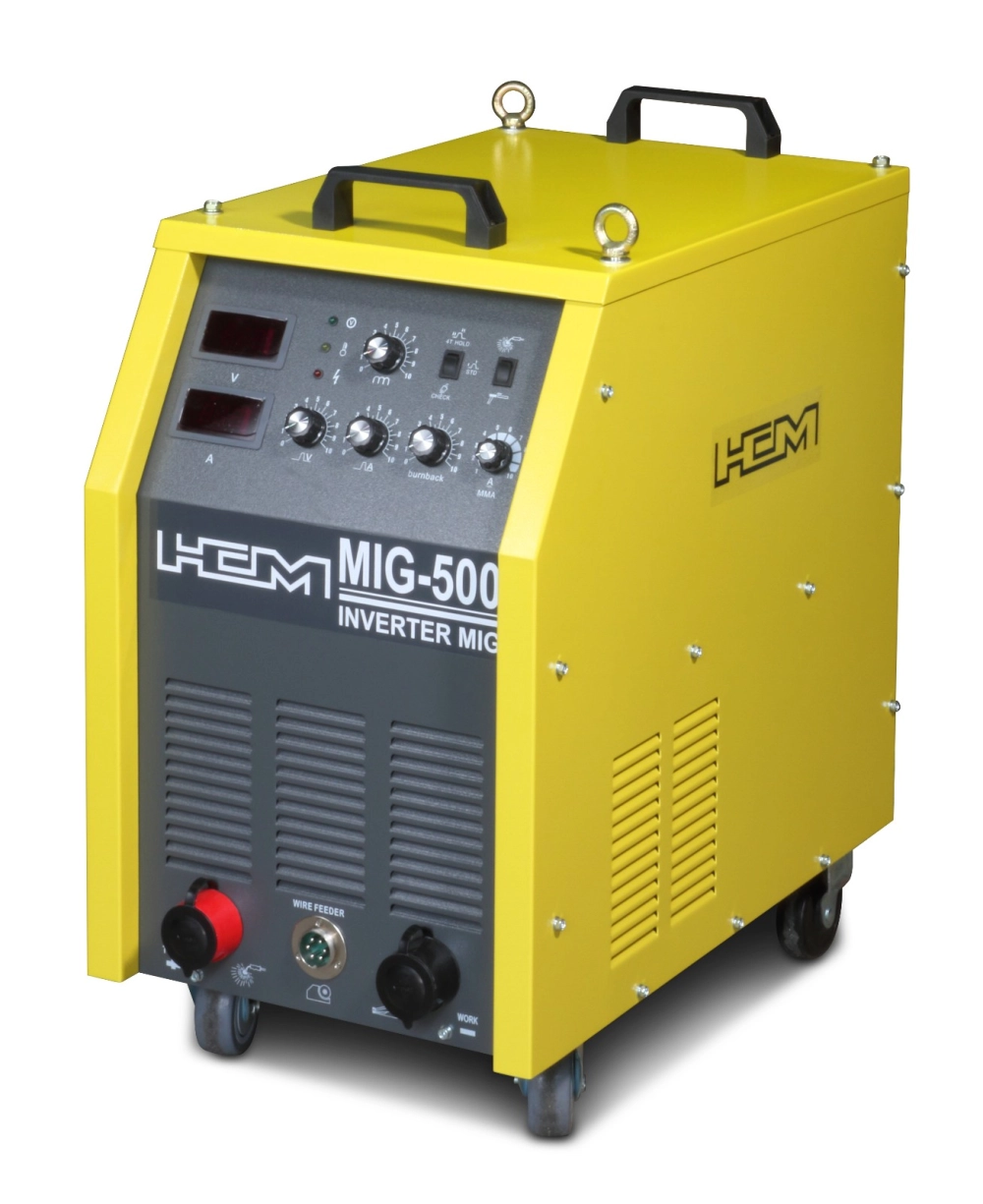

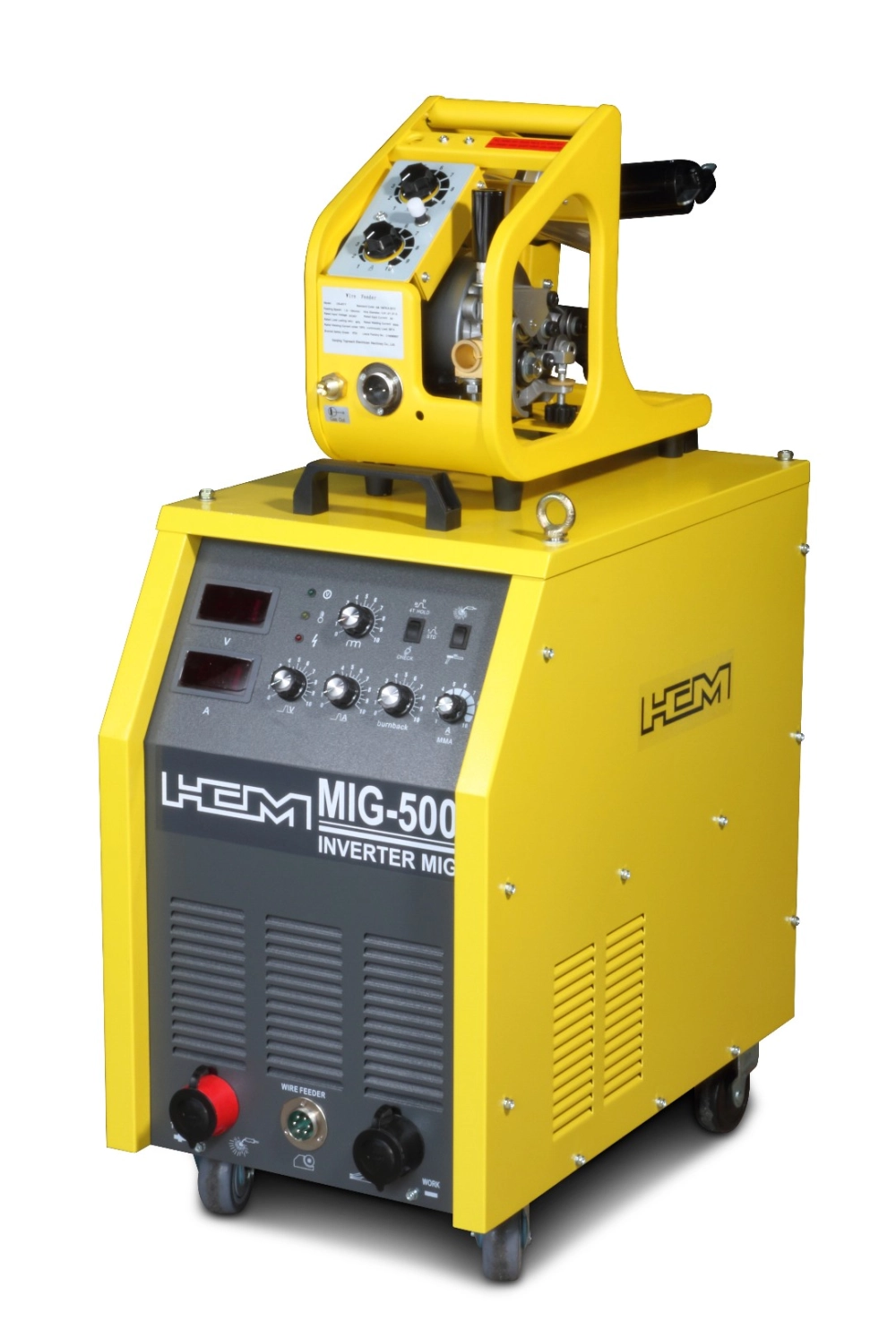

HCM INVERTER MIG WELDING MACHINE MIG-500
WhatsApp us
GMAW (MIG) Welding Machine MIG-500
MIG SERIES
Description:
- Excellent MIG / STICK / MAG welding
- Constant current output / Constant voltage output
- Perfect for carbon steel, stainless steel and aluminum welding
- Electronic reactor, provide stable welding output
- Input voltage compensation (15 %)
- Low input current draw
- Digital display for precision and easy view
| Specification | UNIT | MIG-500 |
| Input Voltage | VAC | 415 ±15% |
| Input Frequency | Hz | 50 / 60Hz |
| Input Capacity | KVA | 18.5 |
| Welding Function | – | MIG / STICK |
| Welding Wire Diameter | Mm | 0.8/ 1.0/ 1.2 |
| Output Current Range – MIG | ADC | 500 |
| Pre – Flow Time | sec | 0.5 |
| Post – Flow Time | sec | 7 |
| Output Voltage | VDC | 17.50 – 31.50 |
| Output Current Range | A | 50 – 500 |
| Open Circuit Voltage | Ø | 68 |
| Duty Cycle | % | 60 |
| Efficiency | % | 85 |
| Power Factor | Ø | 0.7 |
| Insulation Class | Level | H |
| IP Rating | Level | IP 21S |
| Dimension (W x D x H) | mm | 610 x 380 x 630 |
| Weight | KG | 47 |
