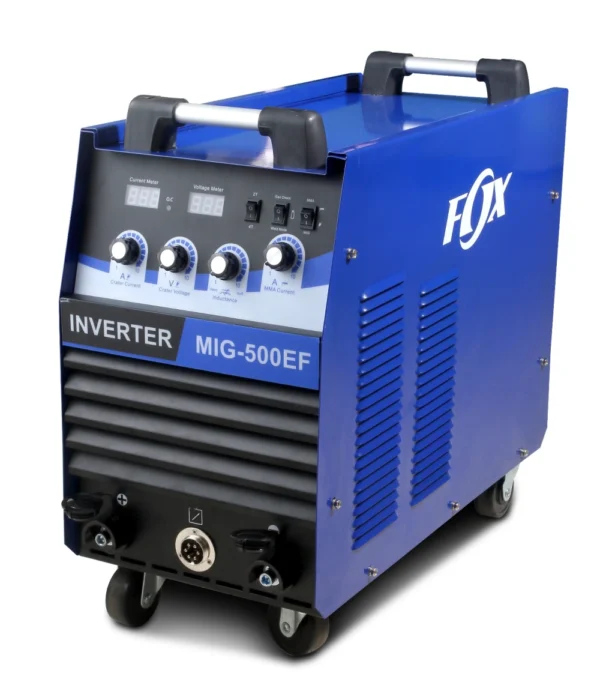

FOX INVERTER MIG WELDING MACHINE MIG-500EF
WhatsApp us
GMAW (MIG/ MAG) Welding Machine MIG-500EF
| SPECIFICATIONS | UNIT | MIG-500EF |
| Input Power | V | AC415 ±15% |
| Frequency | Hz | 50/60 |
| Welding Function | – | MIG / MAG / MMA / Lift TIG |
| Input Current | A | 28 |
| Input Capacity | KVA | 15 |
| No-load Voltage | V | 65 |
| Welding Voltage | V | 17 – 36 |
| MIG Welding Current | A | 60 – 500 |
| MMA Welding Current | A | 30 – 350 |
| Rated Duty Cycle | % | 60 |
| Post Flow Time | SEC | 1 |
| Efficiency | % | 89 |
| Power Factor | – | 0.75 |
| Insulation Class | – | F |
| IP Rating | IP23 | |
| Dimension (L x W x H) | MM | 675 x 380 x 575 |
| Weight | KG | 34 |
Wire Feeder
| SPECIFICATIONS | UNIT | WIRE FEEDER |
| Welding Wire Diameter | MM | 0.8 / 1.0 / 1.2 |
| Wire Feed Speed | M / Min | 1.5 – 16 |
| Dimension (L x W x H) | MM | 585 x 320 x 425 |
| Weight | KG | 17.5 |
