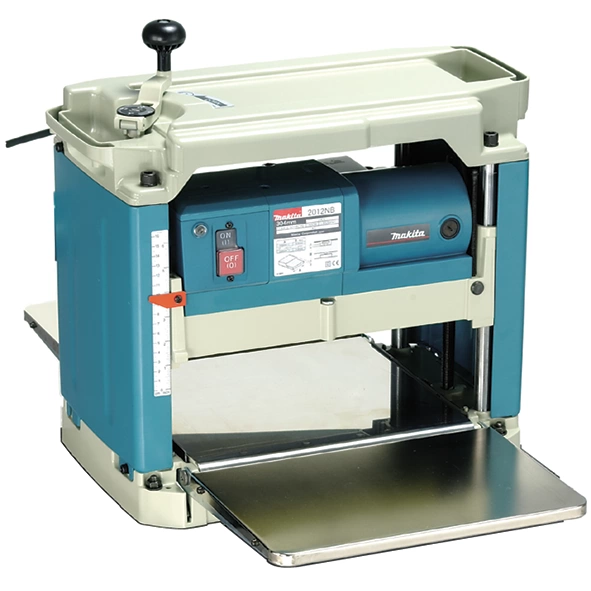

2012NB 304 mm (12″) Planer
WhatsApp us
Features
- Automated Head Clamp Eliminates Snipe
- Compact with less weight for easy transporting to the jobsite
- Engineered for faster, easier blade changes
- Low noise (83dB) for operator comfort
- 4-post design and diagonal cross supports for stability
Specification
| Continuous Rating Input | 1,650 W |
| Cutting Width | 304 mm (12″) |
| Table Size (W x L) | 304 x 771 mm (12″ x 30-3/8″) |
| Feed Rate (min) | 8.5 m (27.9 ft) |
| Cutting Depth | Cutting width 0 – 150 mm : 3 mm (1/8″) Cutting width 150 – 240 mm : 1.5 mm (1/16″) |
| No Load Speed (RPM) | 8,500 |
| Dimensions (L x W x H) | 483 x 771 x 401 mm (19″ x 30-3/8″ x 15-13/16″) |
| Net Weight | 27.1 – 27.6 kg (59.7 – 60.9 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
| Standard Equipment Socket Wrench, Hex Wrench, Magnetic Holder x2 |
|
